Relay Interface Module 6A 1 Changeover | 48V DC Sensitive Coil | LED Status | DIN Rail by NHP
Relay interface module with 6A nominal current and 48V DC sensitive coil—ideal for industrial automation and commercial building management. Built for reliable switching, with LED status indication and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

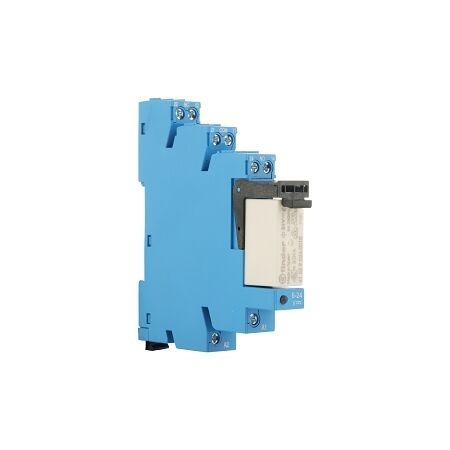

Product Name/Title: Finder 38 Series Relay Interface Modules Relay 6A 1 Changeover 48V DC Sensitive Coil
Brand: NHP
SKU: 385148VDC
Alternatively Known As: Relay Module, Interface Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 230 V: 300 VA
- Breaking Capacity at DC 1 30 V: 6 A
- Breaking Capacity at DC 1 110 V: 0.2 A
- Control Supply Voltage (US) at DC: 48 V
- Type of Electric Connection: Screw connection
- Material of Contact: Silver nickel
- Degree of Protection: IP20
- Dimensions (H x L x W): 884mm x 721mm x 62mm
- Weight: 0.2 kg
Key Features
- 1 changeover contact with a nominal current of 6A.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC controls
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
