Relay Mini 4C/O 24VAC | 4 Changeover Contacts | 6A Contact Rating | Compact Design | @Each of 1 | by Clipsal

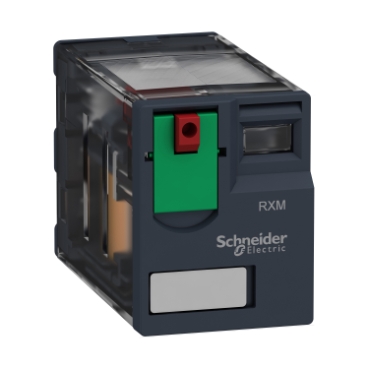

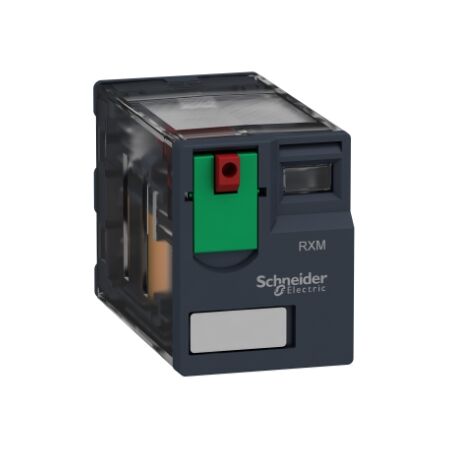

The Relay Mini 4C/O 24VAC is a versatile miniature plug-in relay featuring 4 changeover contacts and a 6A contact rating, perfect for industrial automation and control panels. With a compact design and a manual test button for easy maintenance, this relay ensures reliable performance in building management systems and HVAC applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Relay Mini 4C/O 24VAC | 4 Changeover Contacts | 6A Contact Rating | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM4AB1B7
Alternatively Known As: Harmony RXM relay, RXM4AB1B7, 4 pole plug-in relay, 24VAC relay, miniature relay, Clipsal industrial relay
Technical Specifications
- Contact configuration: 4 C/O (4PDT)
- Coil voltage: 24VAC
- Contact rating: 6A at 250VAC/30VDC
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Dielectric strength: 2,500V AC between coil and contacts
- Operating temperature: -40°C to +55°C
- Mounting: Plug-in socket
- Manual test button and mechanical indicator
- Transparent cover
- Dimensions (H x L x W): 35.5mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 4 changeover (C/O) contacts
- 24VAC coil voltage
- 6A contact rating
- Compact design for space-saving installation
- Mechanical indicator for relay status
- Manual test button for easy maintenance
- Transparent cover for visual inspection
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct operation.
Applications
- Industrial automation panels
- Building management systems
- Control panels
- Lighting control
- HVAC systems
- General switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Low power consumption coil for energy efficiency
- RoHS compliant, minimizing hazardous substances
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Relay Mini 4C/O 24VAC (SCHRXM4AB1B7) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
