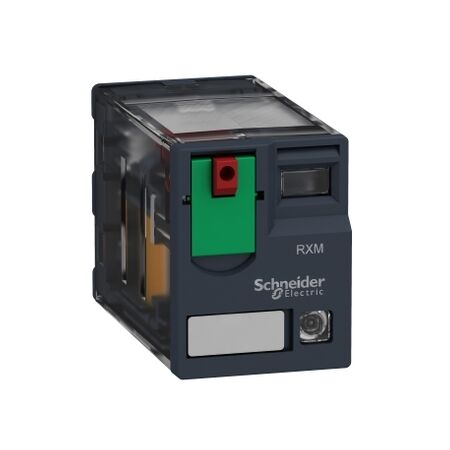

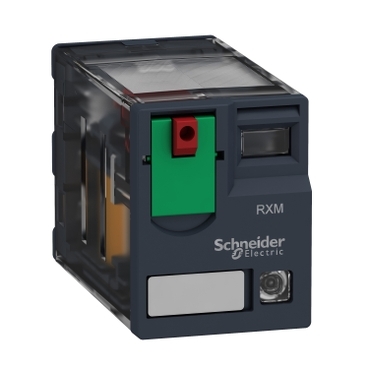

Relay Mini LED 2C/O 120V AC | 12A Switching Capacity | Integrated LED Indicator | Compact Design | @Each of 1 | by Clipsal
The Relay Mini LED 2C/O 120V AC is a versatile miniature plug-in relay designed for industrial automation and control applications. With a 12A switching capacity and an integrated LED indicator for coil status, it ensures reliable performance in various settings. Ideal for building management systems and control cabinets, this relay offers a compact design for space-saving installation and long operational life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Relay Mini LED 2C/O 120V AC | 12A Switching Capacity | Integrated LED Indicator | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM2AB2F7
Alternatively Known As: Miniature Plug-in Relay, Harmony RXM Relay, 2C/O Relay 120V AC, Clipsal SCHRXM2AB2F7, Industrial Control Relay
Technical Specifications
- Contact configuration: 2 C/O (DPDT)
- Coil voltage: 120V AC
- Contact current: 12A
- Contact material: AgNi (Silver Nickel)
- Mechanical durability: 10,000,000 cycles
- Electrical durability: 100,000 cycles at 12A 250V AC
- Operating temperature: -40°C to +55°C
- LED indicator for coil status
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35.5mm x 27.5mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 2 changeover (C/O) contacts
- 120V AC coil voltage
- Integrated LED indicator for coil status
- 12A switching capacity
- Compact design for space-saving installation
- Reliable performance for industrial and commercial use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure correct wiring and safety compliance.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Lighting control
- General switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Low power consumption for energy efficiency
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Relay Mini LED 2C/O 120V AC (SCHRXM2AB2F7) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
