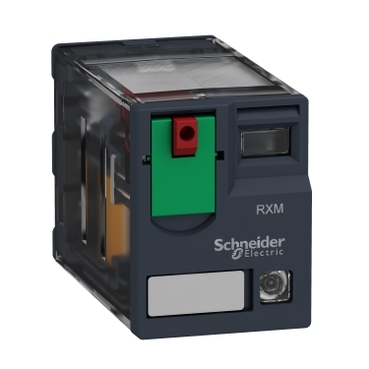

Relay Mini LED 2C/O 240V AC | 12A Switching Capacity | LED Indicator | Compact Design | @1 | by Clipsal
The Relay Mini LED 2C/O 240V AC is a versatile miniature plug-in relay designed for industrial automation and electrical control applications. With a robust 12A switching capacity and an LED indicator for coil status, it ensures reliable performance in various settings. Ideal for building management systems and HVAC controls, this relay offers a long electrical life and compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Relay Mini LED 2C/O 240V AC | 12A Switching Capacity | LED Indicator | Compact Design | @1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM2AB2P7
Alternatively Known As: Miniature plug-in relay, Harmony RXM relay, 2C/O relay 240V AC, Clipsal SCHRXM2AB2P7, LED indicator relay
Technical Specifications
- Contact configuration: 2 changeover (2C/O)
- Coil voltage: 240V AC
- Switching current: 12A
- Contact material: AgNi (Silver Nickel)
- LED indicator for coil status
- Mechanical durability: 10,000,000 cycles
- Electrical durability: 100,000 cycles at rated load
- Operating temperature: -40°C to +55°C
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35.5mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 2 changeover (2C/O) contacts
- LED indicator for coil status
- 12A switching capacity
- 240V AC coil voltage
- Compact design for space-saving installation
- Reliable and long electrical life
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial automation panels
- Building management systems
- Lighting control circuits
- HVAC systems
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED indication reduces unnecessary power consumption.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Relay Mini LED 2C/O 240V AC (SCHRXM2AB2P7) is available for immediate purchase. Ideal for industrial automation, building management, and electrical control applications.
