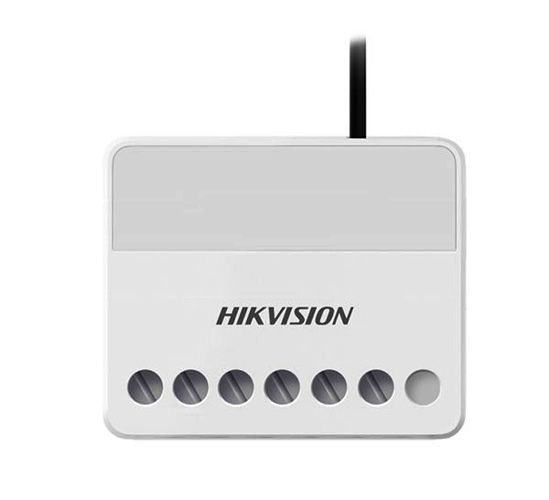

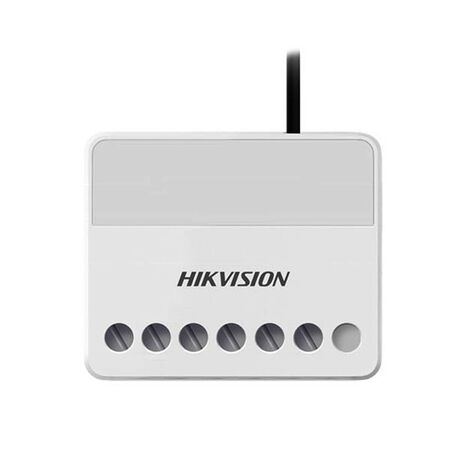

Relay Module AX PRO Hikvision
Hikvision AX PRO relay module for alarm system output control. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AX PRO Relay Output Module, Wireless Alarm Relay, Low-Voltage Relay Expander
Technical Specifications
- Model: DS-PM1-O1L-WB
- Wireless Communication: Two-way 433 MHz RF
- Wireless Security: AES-128 encryption
- Wireless Transmission Distance: Up to 800 m in open air
- Power Supply: 7–24 V DC
- Relay Output: 1 × NO/NC, maximum 5 A at 36 V DC
- Tamper Input: 1 × NO/NC
- Voltage Protection: Supported; disconnects at approximately ≤6.5 V or ≥36.5 V
- Scenario Control: Alarm, operation, fault, schedule or manual activation
- Status Indicators: Registration/signal, power and relay status LEDs
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Installation: Wall mounting
- Housing Material: Plastic
- Colour: White
- Dimensions (H x L x W): 25mm x 18mm x 38mm
- Weight: 0.1 kg
Key Features
- Wireless relay control for Hikvision AX PRO alarm systems
- Switches compatible low-voltage external devices using normally open or normally closed contacts
- Can be triggered by alarm events, schedules, manual commands, keyfobs, keypads or the Hik-Connect app
- Two-way 433 MHz communication with AES-128 encryption
- Built-in tamper input for alarm system monitoring
- Compact housing suitable for concealed or space-restricted installations
- Three LED indicators show registration, power and relay status
Professional Installation Requirements
- Installation and programming should be performed by a suitably qualified security-system installer. Ensure connected loads remain within the 36 V DC, 5 A relay rating; any connection to mains-powered equipment must be completed by a licensed electrician in accordance with applicable Australian wiring requirements.
Applications
- Alarm-triggered control of electric locks, gates and garage-door interfaces
- Remote switching of low-voltage sounders, indicators and auxiliary devices
- Automation of external equipment from AX PRO alarm events or schedules
- Residential security systems
- Commercial and small-business intrusion alarm installations
Standards & Compliance
- AS/NZS IEC 60839.11.1:2019 - applicable system-level requirements for electronic security and alarm equipment
- AS/NZS 3000:2018 - applicable to any associated electrical installation or mains-side wiring, where relevant
Environmental Benefits
- Low-voltage DC operation avoids the module itself requiring mains power
- Compact construction reduces material use and installation space
- Remote event-based switching can reduce the need for separate control hardware and additional wiring
- Durable wall-mounted design may reduce replacement frequency and electronic waste
Warranty Information
Hikvision Australia warranty coverage is subject to the applicable distributor contract, proof of purchase and authorised supply channel. Australian AX PRO distributors commonly advertise a 3-year warranty; confirm the exact term at purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors and installers.
