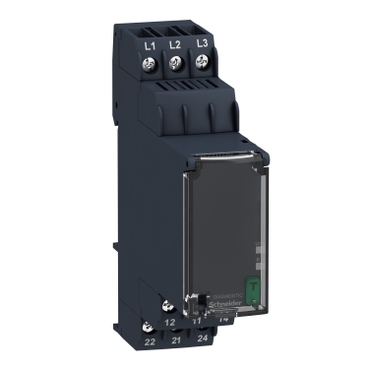

Relay Phase Sequence & Phase Loss 3P | 200-480V AC | Compact DIN Rail Mount | LED Indicators | @Pack of 1 | by Clipsal
Relay Phase Sequence & Phase Loss 3P is designed to protect three-phase systems by detecting incorrect phase sequences and phase loss. With a wide operating voltage range of 200-480V AC and a fast response time of less than 200ms, this compact DIN rail mount relay ensures reliable operation in industrial and commercial applications. Ideal for motor protection and HVAC systems, it features LED indicators for easy monitoring and automatic reset after fault clearance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Relay Phase Sequence & Phase Loss 3P | 200-480V AC | Compact DIN Rail Mount | LED Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRM22TG20
Alternatively Known As: Phase Failure Relay, Phase Sequence Relay, 3 Phase Monitoring Relay, Phase Loss Protection Relay, Clipsal SCHRM22TG20
Technical Specifications
- Operating Voltage: 200-480V AC (3-phase)
- Frequency: 50/60Hz
- Output: 1 changeover relay contact (SPDT)
- Contact Rating: 8A at 250V AC
- Response Time: <200ms
- Mounting: DIN rail
- LED indicators for phase status
- Operating Temperature: -20°C to +60°C
- Dimensions (H x L x W): 90mm x 70mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Detects incorrect phase sequence and phase loss in three-phase systems
- Compact DIN rail mount design
- LED status indicators for easy monitoring
- Automatic reset after fault clearance
- Wide voltage range compatibility (200-480V AC)
- Fast response time for equipment protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial motor protection
- Commercial electrical panels
- HVAC systems
- Pumps and compressors
- Three-phase equipment safety
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage, reducing waste and extending machinery lifespan
- Enhances operational efficiency by minimizing downtime
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Relay Phase Sequence & Phase Loss 3P SCHRM22TG20 is available for immediate purchase. Ideal for protecting three-phase equipment in industrial and commercial environments.
