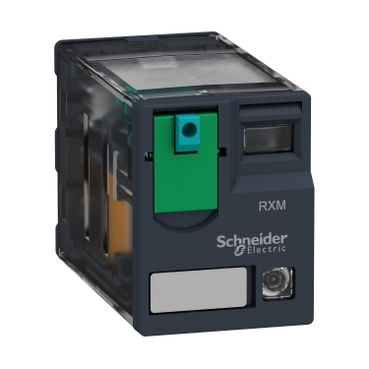

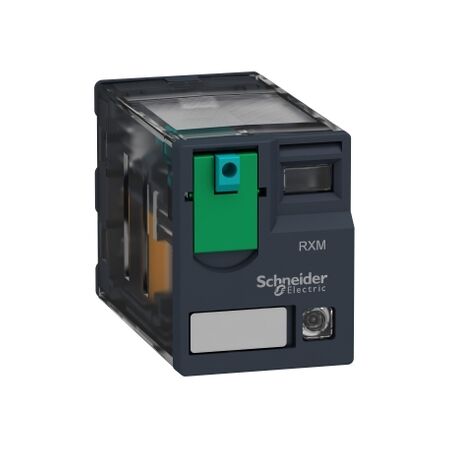

Relay Plug In 2C/O 12A 12VDC | Miniature Design | LED Indicator | Compact Installation | @Each of 1 | by Clipsal
The Relay Plug In 2C/O 12A 12VDC is a miniature plug-in relay designed for reliable switching in industrial automation and control panels. With a contact rating of 12A at 12V DC and an integrated LED indicator for coil status, this relay ensures efficient performance and easy installation. Ideal for HVAC systems and building management, it offers long operational life and energy-efficient switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Relay Plug In 2C/O 12A 12VDC | Miniature Design | LED Indicator | Compact Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM2AB2JD
Alternatively Known As: Miniature Plug-in Relay, Harmony RXM Relay, 2C/O 12VDC Relay, SCHRXM2AB2JD Relay, Clipsal Plug-in Relay
Technical Specifications
- Contact configuration: 2 C/O (DPDT)
- Coil voltage: 12V DC
- Contact rating: 12A at 250V AC / 30V DC
- Mechanical durability: 10,000,000 cycles
- Electrical durability: 100,000 cycles at rated load
- Operating temperature: -40°C to +55°C
- LED indicator for coil status
- Dielectric strength: 2,500V AC (between coil and contacts)
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 2 changeover (C/O) contacts
- Rated for 12A at 12V DC
- Integrated LED indicator for coil status
- Compact design for easy installation
- Reliable switching performance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct wiring and safety compliance.
Applications
- Industrial automation panels
- Building management systems
- Control panels
- HVAC systems
- General switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient switching reduces power consumption in control systems.
- Long operational life minimizes electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Relay Plug In 2C/O 12A 12VDC (SCHRXM2AB2JD) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
