Relay Plug In 2C/O 12A 24VDC | Miniature Design | LED Indicator | Robust Performance | by Clipsal
Relay Plug In 2C/O 12A 24VDC is designed for industrial automation and control applications, featuring a compact design and 12A contact rating for reliable performance. With an integrated LED indicator for coil status, this miniature relay ensures easy installation and maintenance, making it ideal for building management systems and control cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

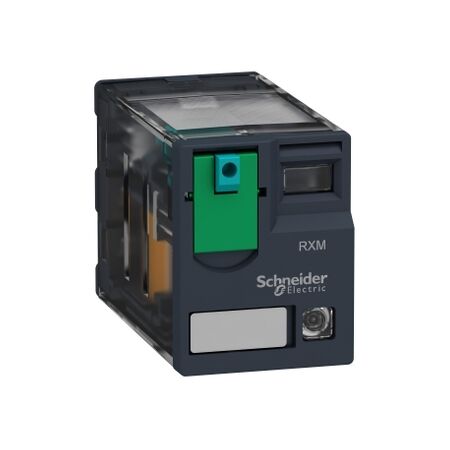

Product Name/Title: Relay Plug In 2C/O 12A 24VDC | Miniature Design | LED Indicator | Robust Performance | by Clipsal
Brand: Clipsal
SKU: SCHRXM2AB2BD
Alternatively Known As: Miniature Plug-in Relay, Harmony RXM Relay, 2C/O 12A 24VDC Relay, SCHRXM2AB2BD, Control Relay, Clipsal Plug-in Relay
Technical Specifications
- Contact configuration: 2C/O (DPDT)
- Contact rating: 12A at 250V AC/30V DC
- Coil voltage: 24V DC
- Coil power consumption: 0.9W
- Mechanical durability: 10,000,000 operations
- Electrical durability: 100,000 operations at rated load
- Operating temperature: -40°C to +55°C
- LED indicator for coil status
- Dielectric strength: 2,500V AC (between coil and contacts)
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay for easy installation and replacement
- 2 changeover (2C/O) contacts for versatile switching
- 12A contact rating for robust performance
- 24V DC coil voltage
- Integrated LED indicator for coil status
- Compact design suitable for space-constrained panels
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct wiring and safe operation.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Switchboards
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Low power consumption coil for energy efficiency
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Relay Plug In 2C/O 12A 24VDC (SCHRXM2AB2BD) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
