Relay Socket for RXG2 Relays | 5A | Screw Connectors | Clamp by Clipsal
Relay socket with 5A current and screw connectors—ideal for industrial automation and control systems. Built for quick installation, with clamp for easy relay replacement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

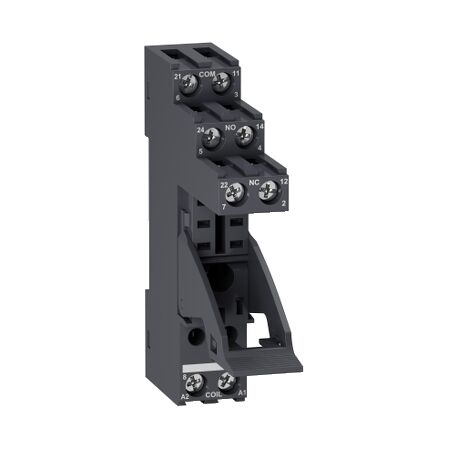

Product Name/Title: Harmony Electromechanical Relays, Socket with clamp, for RXG2 relays, 5A, screw connectors, separate contact
Brand: Clipsal
SKU: RGZE1S48M
Alternatively Known As: RXG2 Relay Socket, Electromechanical Relay Socket, Relay Socket with Clamp
Technical Specifications
- Rated current: 5A
- Rated operational voltage: 250V
- Connections: Screw terminals
- Contact type: 2 C/O
- Rated insulation voltage: 250V
- Rated impulse withstand voltage: 6kV
- Dielectric strength: 5kV
- Overvoltage category: III
- Pollution degree: 3
- Ambient air temperature for operation: -40 to 70 °C
- IP degree of protection: IP20
- Dimensions (H x L x W): 16mm x 79mm x 68mm
- Weight: 0.04 kg
Key Features
- Quick and easy plug-in installation of relays without the need for tools.
- Compatible with all 2 C/O DPDT RXG relays.
- Simple relay retention via clamp allows quick replacement of relays.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: Building management systems, HVAC control
Standards & Compliance
- Complies with CSA C22.2 No 14, IEC 61984, UL 508
Environmental Benefits
- Green Premium product status indicates environmentally friendly design.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Electromechanical Relay Socket is available now for immediate purchase. Ideal for industrial automation and control systems.
