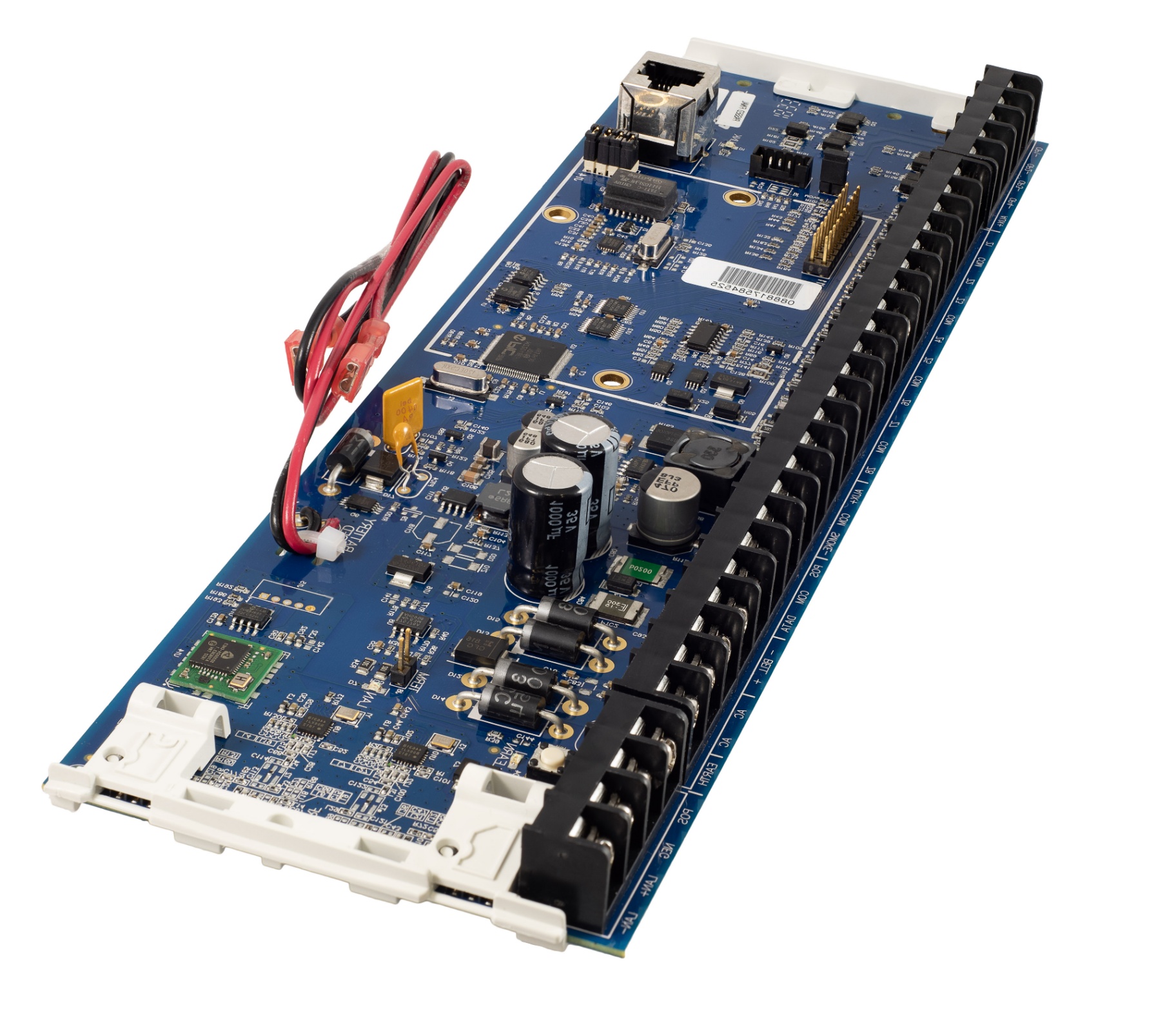

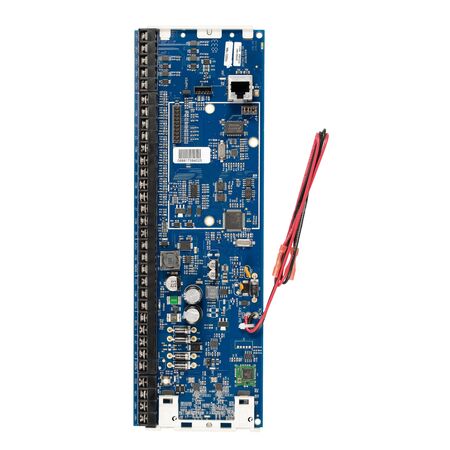

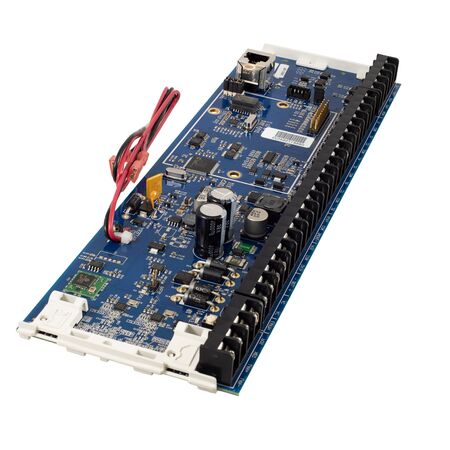

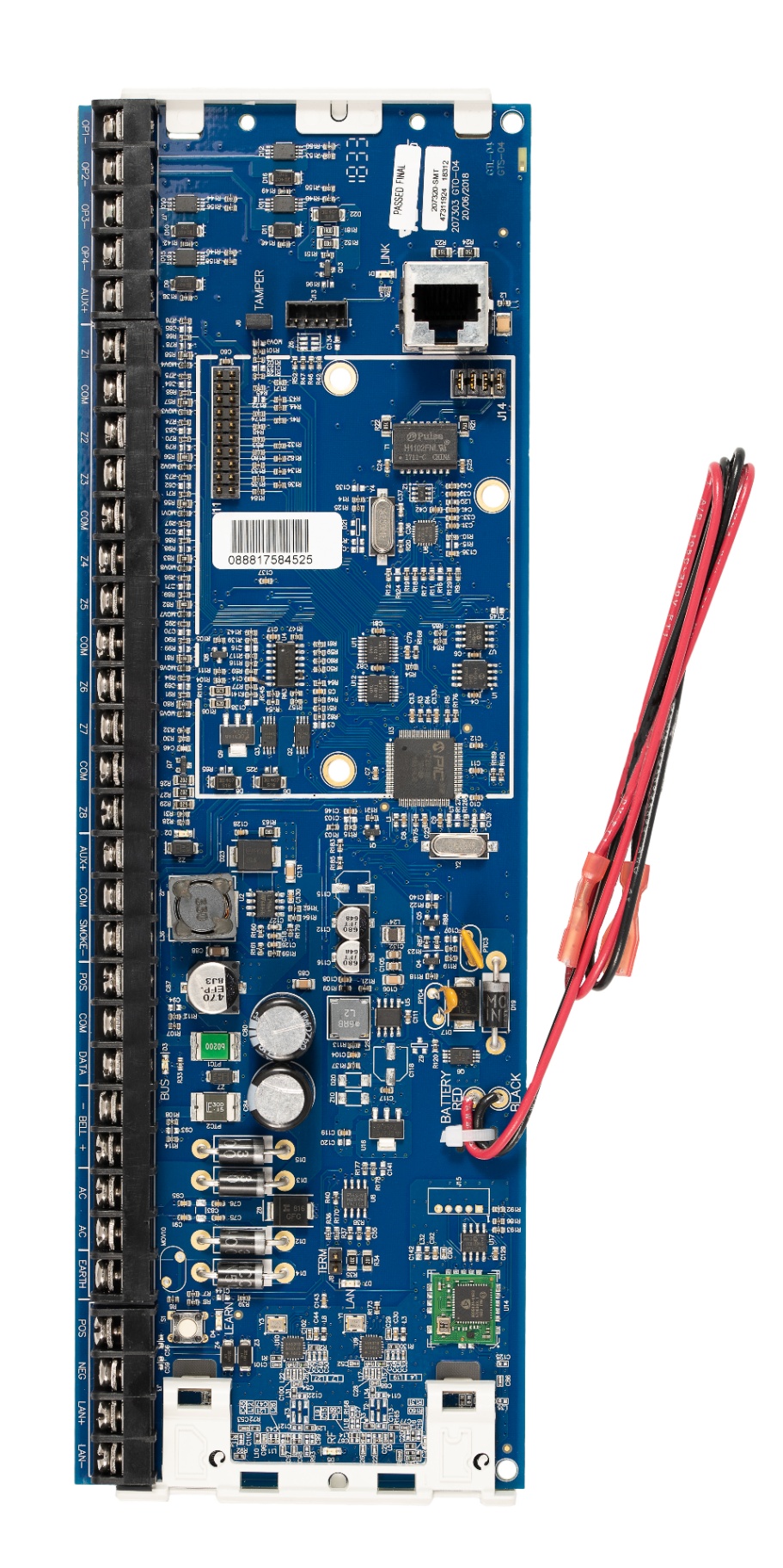

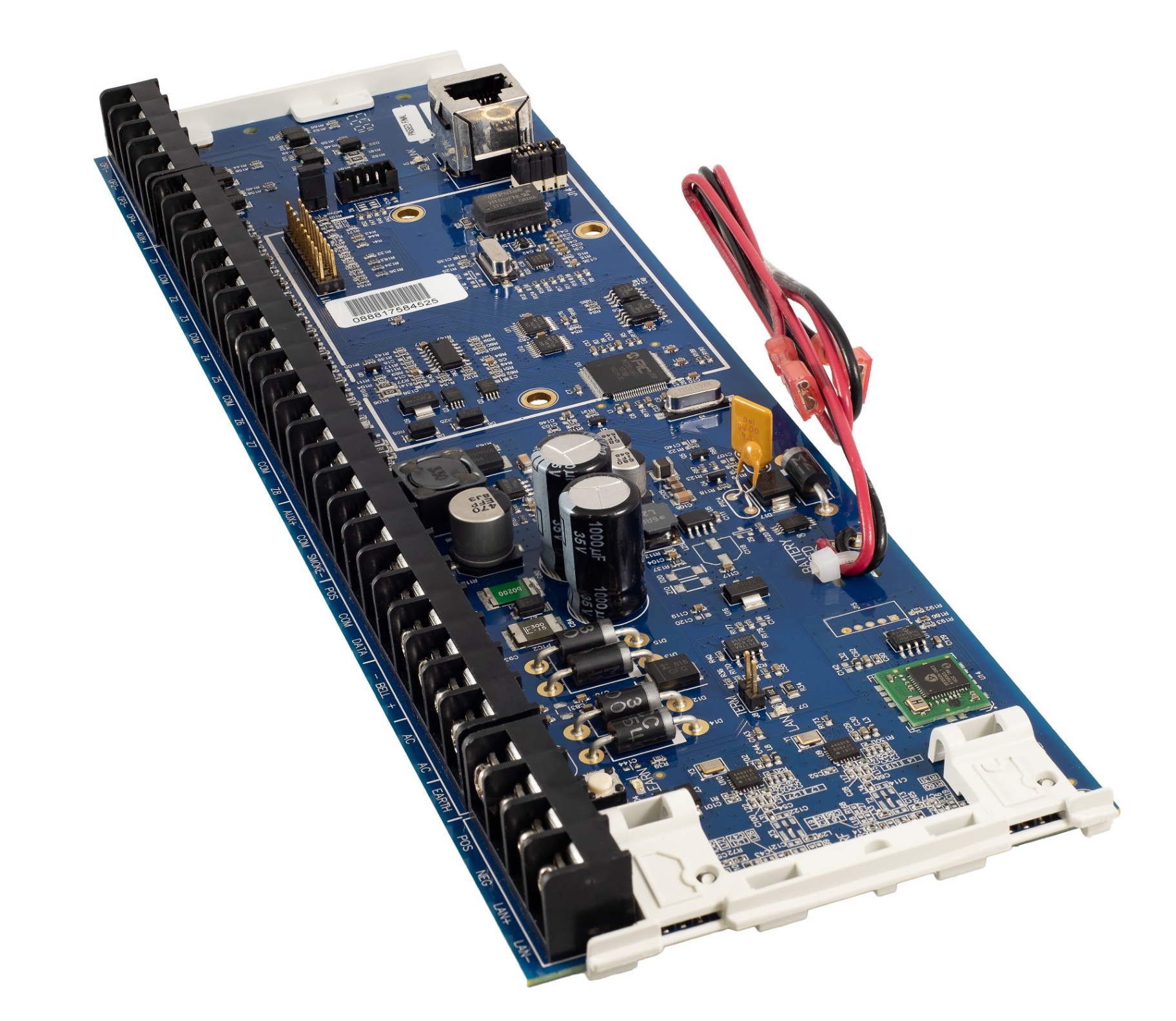

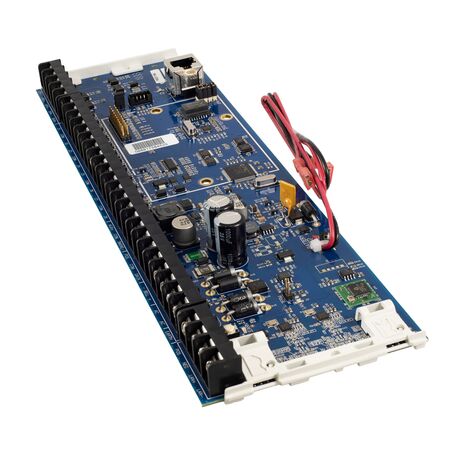

RELIANCE S110619 XRPRO PCB | 176 Max System Inputs | Onboard Ethernet & Wireless Support | by Reliance XR
The RELIANCE S110619 XRPRO PCB is designed for scalable intrusion detection systems, featuring 176 max system inputs and onboard Ethernet for secure cloud connectivity. Ideal for both residential and commercial security installations, this PCB supports wireless technology and offers flexibility for legacy system upgrades, ensuring robust performance and user-friendly operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RELIANCE S110619 XRPRO PCB | 176 Max System Inputs | Onboard Ethernet & Wireless Support | by Reliance XR
Brand: Reliance XR
SKU: NXX-8-WZ-BO-AU
Alternatively Known As: Reliance XR Pro PCB, UltraSync XR Intrusion Panel Board, Aritech Reliance XR Board
Technical Specifications
- Max system inputs: 176
- Onboard inputs: 8 (16 zone doubled)
- Onboard outputs: 4 (Output collector type; Output 1 & 2 preprogrammed for Strobe and Piezo)
- Dedicated external siren support: Yes
- Wireless receiver: Yes - Onboard
- Max wireless inputs: 176 (Inclusive of max system inputs)
- Wireless technology: ITI (Legacy) + 80Plus
- Users supported: 256
- Dedicated smoke terminal: Yes
- Ethernet: Yes - Onboard
- App support: UltraSync+ for user operation and installer programming
- 4G module: Optional NXX-4G-WFSIM-AU (requires control room registration)
- Reliance XR bus: 4 Wire RS485 (Recommended cables: Belden 7201A, 3107A, 9842 or equivalent)
- NX bus (legacy) compatibility: Yes, limited functionality
- Enclosure compatibility: NX-003 (Retrofit into Reliance NX-12/16 or Reliance R12/128 enclosure)
- Dimensions (H x L x W): 250mm x 50mm x 300mm
- Weight: 1.5 kg
Key Features
- Part of the UltraSync family offering scalability and flexibility
- Supports retrofit for existing NX or Reliance panels
- Supports 4-wire XR bus and 3-wire legacy NX or Reliance bus
- Onboard ethernet port for secure UltraSync Cloud connection
- Optional 4G & WiFi router plug-on module for cellular connectivity
- Built-in web server for control, user administration, and programming
- Auto enroll feature for XR series expanders
- Zone-doubling support
- Legacy & LoNa 433 MHz RF receiver onboard
- Firmware upgradeable in the field
Professional Installation Requirements
- Professional installation by a licensed security system installer or qualified electrician is required to ensure proper setup, configuration, and compliance with safety standards.
Applications
- Residential security systems
- Commercial security installations
- Legacy system upgrades
- Large scale intrusion detection setups
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports remote connectivity reducing the need for physical maintenance visits
- Firmware upgradeable to extend product lifecycle and reduce electronic waste
Warranty Information
2 years warranty from the date of purchase covering manufacturing defects.
Available Now
The RELIANCE S110619 XRPRO PCB 2YR is available for immediate purchase, ideal for upgrading or installing scalable intrusion detection systems in residential and commercial environments.
