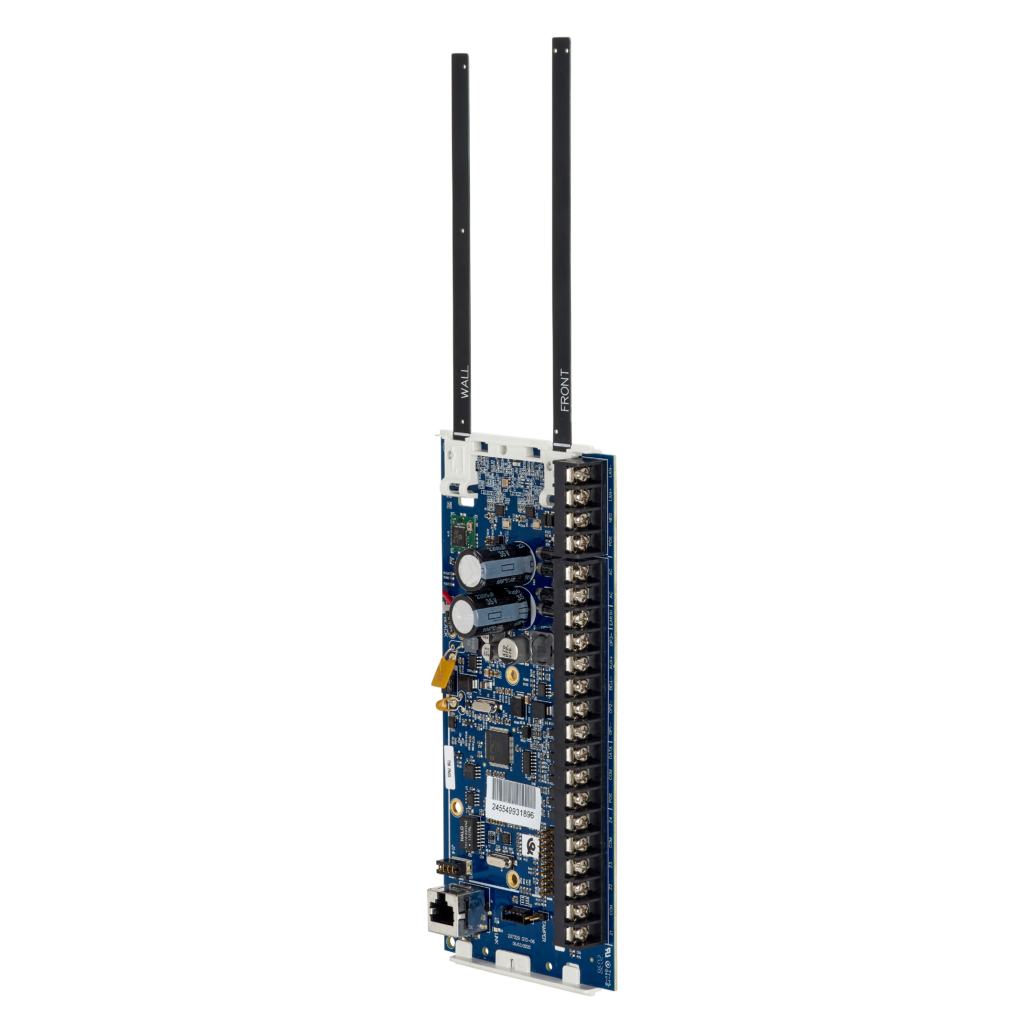

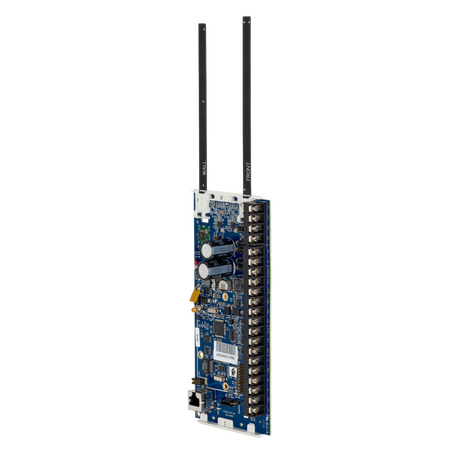

Reliance XR PCB Board | 4-Wire XR Bus Support | Built-in Web Server | Zone-Doubling Capability | by Reliance
The Reliance XR PCB Board is designed for seamless integration into existing NX or Reliance security systems, supporting both 4-wire XR bus and 3-wire legacy protocols. With onboard inputs and outputs, a built-in web server for remote control, and zone-doubling capability, it’s perfect for residential and commercial security installations. Upgrade your legacy systems effortlessly with this versatile control board.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reliance XR PCB Board | 4-Wire XR Bus Support | Built-in Web Server | Zone-Doubling Capability | by Reliance
Brand: Reliance
SKU: NXX-4-W-BO-AU
Alternatively Known As: Reliance XR Control Board, Reliance XR Intrusion Panel PCB, UltraSync XR PCB Board
Technical Specifications
- Supports 4-wire XR bus and 3-wire legacy NX or Reliance bus protocols
- Onboard inputs and outputs for flexible installation
- Built-in web server for remote control and programming
- Zone-doubling capability
- Legacy & LoNa 433 MHz RF receiver onboard
- Optional 4G/WiFi and 4G plug-on modules available
- Dimensions (H x L x W): 200mm x 50mm x 250mm
- Weight: 0.5 kg
Key Features
- Designed for retrofit where existing NX or Reliance panels are installed
- Supports both 4-wire XR bus protocol and 3-wire legacy NX or Reliance bus
- Two panel sizes available for different installation scales
- Onboard inputs and outputs
- Built-in web server for control, user administration, and programming
- Auto enroll feature for XR series expanders
- Zone-doubling support
- Legacy & LoNa 433 MHz RF receiver onboard for 63 bit and 80plus accessories
- Optional 4G/WiFi and 4G plug-on module
- Firmware upgradeable in the field
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Residential security systems
- Small to large commercial security installations
- Upgrading legacy intrusion panel systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Firmware upgradeable in the field reduces electronic waste by extending product life
- Supports retrofit installations minimizing the need for full system replacements
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Reliance XR PCB Board is available now for immediate purchase. Ideal for residential and commercial security system installations and upgrades.
