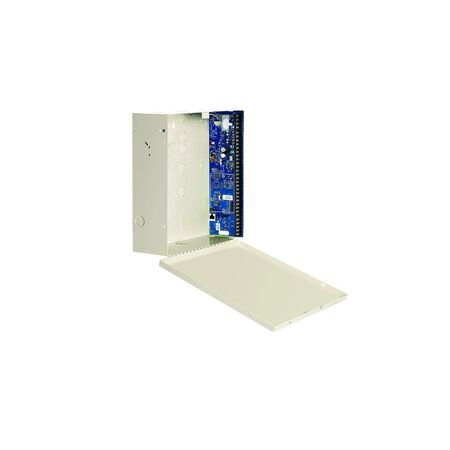

RELIANCE XR PCB with Metal Housing | 24 Max Inputs | Onboard Ethernet & Wireless | by Reliance XR

BRAND: Reliance XR
SKU: NXX-4-W-AU
$390.50 List price: $472.60
+ −
30 Days Return Delivery Options
The RELIANCE XR PCB with Metal Housing is a scalable hybrid intrusion panel featuring 24 max inputs and onboard Ethernet for secure UltraSync Cloud connectivity. Ideal for both residential and commercial security installations, it supports retrofit installation and offers optional 4G connectivity for enhanced reliability. With built-in web server capabilities, this panel ensures easy user administration and programming.

Product Name/Title: RELIANCE XR PCB with Metal Housing | 24 Max Inputs | Onboard Ethernet & Wireless | by Reliance XR

Brand: Reliance XR

SKU: NXX-4-W-AU

Alternatively Known As: Reliance XR Intrusion Panel, Aritech Reliance XR Security Panel, UltraSync Reliance XR Alarm Panel

Technical Specifications
  • Max system inputs: 24
  • Onboard inputs: 4 (8 zone doubled)
  • Onboard outputs: 3 (Output collector type; Output 1 & 2 preprogrammed for Strobe and Piezo)
  • Dedicated external siren: Yes
  • Wireless receiver: Yes - Onboard
  • Max wireless inputs: 16 (Inclusive of Max System Inputs)
  • Wireless technology: ITI (Legacy) + 80Plus
  • Users supported: 40
  • Dedicated smoke terminal: No (Available on XRpro)
  • Ethernet: Yes - Onboard
  • App support: UltraSync+ (User operation + Installer programming)
  • 4G module: Optional - NXX-4G-WFSIM-AU (Must be registered with control room for 4G Communication)
  • Reliance XR bus: 4 Wire RS485 - Recommended cables: Belden 7201A, 3107A, 9842 or equivalent
  • NX bus (legacy) compatibility: Yes - Limited functionality
  • Enclosure: NX-002 (Retrofit into Reliance NX-4 or Reliance R8 enclosure)
  • Dimensions (H x L x W): 250mm x 80mm x 300mm
  • Weight: 1.5 kg
Key Features
  • Scalable and flexible hybrid intrusion panel
  • On-board Ethernet port for secure UltraSync Cloud connection
  • Optional 4G & WiFi router plug-on module for cellular backup or primary connectivity
  • Supports retrofit installation for existing NX or Reliance panels
  • Supports 4-wire XR bus and 3-wire legacy NX or Reliance bus protocols
  • Onboard inputs and outputs with zone-doubling support
  • Built-in web server for control, user administration, and programming
  • Legacy & LoNa 433 MHz RF receiver onboard for 63 bit and 80plus accessories
  • Firmware upgradeable in the field
Professional Installation Requirements
  • Professional installation by a qualified security system installer is required to ensure proper integration and compliance with safety standards.
Applications
  • Residential security systems
  • Small to large commercial security installations
  • Upgrading legacy intrusion alarm systems
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports remote monitoring reducing the need for physical service visits
  • Firmware upgradeable to extend product lifecycle and reduce electronic waste
Warranty Information

2 years warranty provided by the manufacturer.

Available Now

The RELIANCE XR PCB with Metal Housing is available for immediate purchase, ideal for residential and commercial security system installations.
