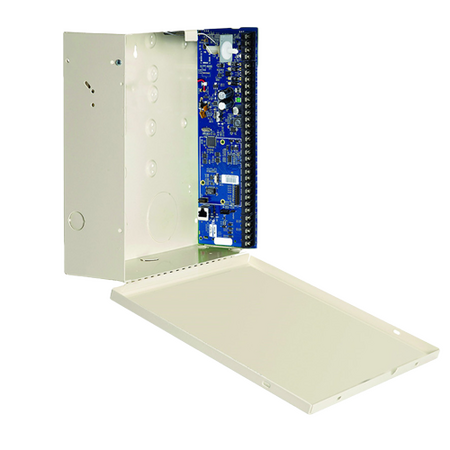

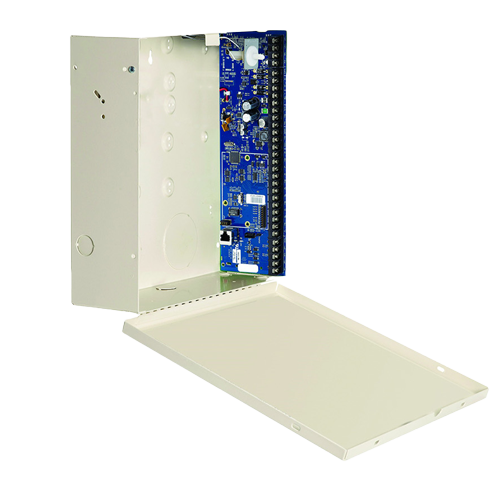

Reliance XR PCB with Metal Housing | 4-Wire XR Bus Support | Built-in Web Server | Zone-Doubling Capability | by Reliance
The Reliance XR PCB with Metal Housing is designed for seamless integration into existing security systems, supporting 4-wire XR bus and 3-wire legacy protocols. Ideal for both residential and commercial installations, it features onboard inputs and outputs, a built-in web server for remote control, and zone-doubling capability, ensuring flexibility and ease of use for security professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reliance XR PCB with Metal Housing | 4-Wire XR Bus Support | Built-in Web Server | Zone-Doubling Capability | by Reliance
Brand: Reliance
SKU: NXX-4-W-AU
Alternatively Known As: Reliance XR Intrusion Panel, Reliance XR Security Control Panel, Aritech Reliance XR PCB
Technical Specifications
- Supports 4-wire XR bus and 3-wire legacy bus protocols
- Onboard inputs and outputs for flexible installation
- Built-in web server for remote control and programming
- Zone-doubling capability
- Legacy & LoNa 433 MHz RF receiver onboard
- Optional 4G/WiFi and 4G plug-on modules available
- Firmware upgradeable in the field
- Dimensions (H x L x W): 250mm x 80mm x 300mm
- Weight: 1.5 kg
Key Features
- Designed for retrofit where existing NX or Reliance panels are installed
- Supports 4-wire XR bus protocol and 3-wire legacy NX or Reliance bus
- Two panel sizes available for different installation scales
- Onboard inputs and outputs
- Built-in web server for control, user administration, and programming
- Auto enroll feature for XR series expanders
- Zone-doubling support
- Legacy & LoNa 433 MHz RF receiver onboard for 63 bit and 80plus accessories
- Optional 4G/WiFi and 4G plug-on module
- Firmware upgradeable in the field
Professional Installation Requirements
- Professional installation by a licensed security system installer or qualified technician is required to ensure proper setup and compliance with safety standards.
Applications
- Residential security systems
- Small to large commercial security installations
- Upgrading legacy intrusion panel systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Firmware upgradeable to extend product life and reduce electronic waste
- Supports retrofit installations to minimize replacement waste
Warranty Information
2 years warranty covering manufacturing defects and hardware failures.
Available Now
The Reliance XR PCB with Metal Housing is available for immediate purchase, ideal for residential and commercial security system installations.
