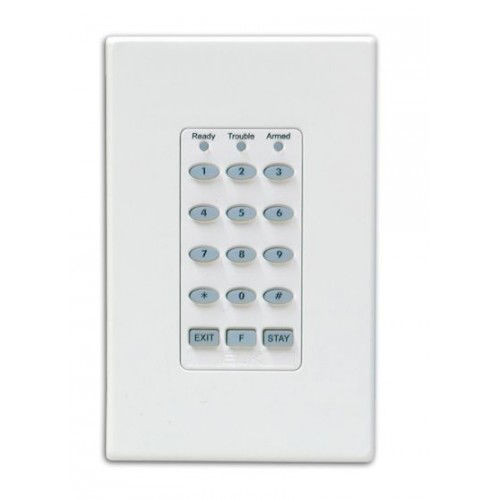

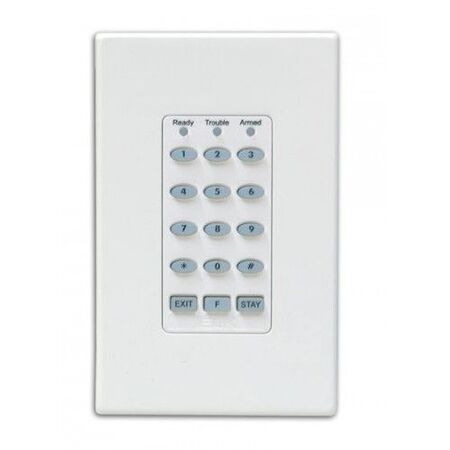

Remote Arming Station 12 Button Keypad Blue Backlight Ness

BRAND: Ness
SKU: 101-226
$74.90 List price: $99.90
+ −
30 Days Return Electricians Unlock Trade Access
Ness remote arming station features a 12 button keypad, LED indicators and a blue backlight. Ideal for alarm system arming.

Alternatively Known As: Ness M1 Keypad Arming Station, Ness 12-Button Alarm Keypad, Ness M1KPAS

Technical Specifications
  • Model: M1KPAS
  • SKU: 101-226
  • Keypad: Blue/white backlit 12-button keypad
  • Status Indicators: Green Ready, yellow Trouble and red Armed LEDs
  • Compatibility: Ness M1 Gold 14/28 and Ness EZ-24 control panels
  • Data Connection: M1/EZ8 RS-485 data bus
  • Connector: 6-pin plug-in flying lead, included
  • Operating Voltage: 13.8 VDC
  • Current Draw: Less than 30 mA minimum activity; 44 mA fully active
  • Sounder: Built-in piezo sounder with adjustable pitch
  • Programmable Functions: Six function operations via F key and keys 1–6
  • Arming Functions: Quick Stay and Away/Exit arm keys
  • Mounting: Flush mounts into a standard single-gang electrical box
  • Faceplate Colour: White
  • Dimensions (H x L x W): 118mm x 25mm x 74mm
  • Weight: 0.15 kg
Key Features
  • 12-button keypad with blue LED backlighting
  • Displays Ready, Trouble and Armed status using three LEDs
  • Provides simple arming and disarming for compatible Ness alarm systems
  • Supports six programmable function operations
  • Built-in adjustable-pitch piezo sounder
  • Compact flush-mount design for a standard electrical box
  • Suitable for partitioned areas including offices, workshops and garages
Professional Installation Requirements
  • Installation and connection should be performed by a suitably qualified security or electrical technician. Configure the station only with compatible Ness control panels and install system wiring in accordance with applicable regulations and AS/NZS 2201.1 requirements.
Applications
  • Arming and disarming compatible Ness M1 and EZ-24 alarm panels
  • Secondary keypad for partitioned commercial or residential areas
  • Office, workshop, garage and access-point alarm control
  • Alarm system status indication and programmable function access
Standards & Compliance
  • AS/NZS 2201.1:2007 - applicable to the design, installation, commissioning and maintenance of the associated intruder alarm system; product-specific certification was not identified
Environmental Benefits
  • Low-voltage 13.8 VDC operation and low current draw support reduced operating energy consumption
  • Durable wired construction can extend service life and reduce replacement waste
  • Suitable for repair or extension of compatible existing alarm systems, avoiding unnecessary full-system replacement
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness Corporation warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security distributors; confirm current stock and compatibility before ordering.
