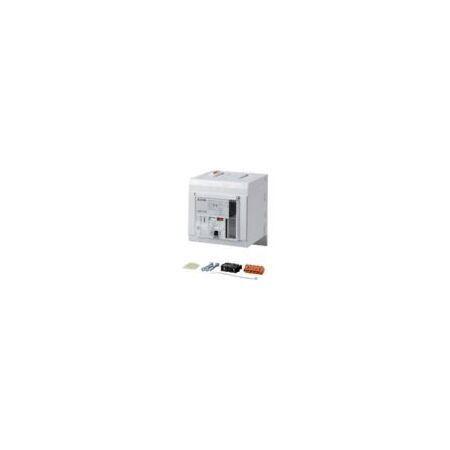

Remote Operator for NZM3 Circuit Breakers | 208-240V AC | Motor Drive & 15,000 Operations | Eaton
Enhance your electrical systems with the NZM3 remote operator, designed for 208-240V AC applications. Ideal for industrial and commercial switchgear, it features a motor drive mechanism and a mechanical lifespan of 15,000 operations, ensuring reliable performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Remote Operator for NZM3 Circuit Breakers | 208-240V AC | Motor Drive & 15,000 Operations | Eaton
Brand: Eaton
SKU: Y7-259850
Alternatively Known As: NZM3 Remote Operator, Eaton NZM3 Motor Drive, Molded Case Circuit Breaker Remote Operator
Technical Specifications
- Voltage rating: 208 - 240 V AC, 50/60 Hz
- Power consumption: 350 VA (110 - 130 V AC)
- Mechanical lifespan: 15,000 operations
- Breaking time: 1000 ms
- Closing delay: 80 ms
- Number of poles: Three-pole/Four-pole
- Rated control supply voltage (Us) AC 50 Hz: 208 - 240 V
- Rated control supply voltage (Us) AC 60 Hz: 208 - 240 V
- Terminal capacity: 18 - 14 AWG (0.75 mm² - 2.5 mm²) with ferrule
- Switch drive type: Motor drive
- Signal duration at switch off: minimum 250 ms
- Signal duration at switch on: minimum 30 ms
- Dimensions (H x L x W): 140mm x 170mm x 140mm
- Weight: 3.2 kg
Key Features
- Remote operator for NZM3 size molded case circuit breakers
- Voltage rating: 208-240 V AC, 50/60 Hz
- Motor drive switch mechanism
- Three-pole or four-pole operation
- Mechanical lifespan of 15,000 operations
- Signal duration at switch off: minimum 250 ms
- Signal duration at switch on: minimum 30 ms
- Terminal capacity supports 18 - 14 AWG (0.75 mm² - 2.5 mm²) conductors with ferrule
- Cannot be combined with switch-disconnector PN... M22-CK11(20/02) or dual auxiliary switch with NZM3-XR remote operator
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with switchgear and circuit breaker systems to ensure compliance with electrical safety standards.
Applications
- Industrial electrical panels requiring remote operation of molded case circuit breakers
- Commercial and industrial switchgear assemblies
- Control systems needing synchronized remote switching
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables remote operation reducing the need for manual intervention, improving safety and operational efficiency
- Supports reliable electrical protection contributing to reduced equipment damage and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller NZM3-XR208-240AC Remote Operator is available for immediate purchase, ideal for industrial and commercial electrical switchgear applications.
