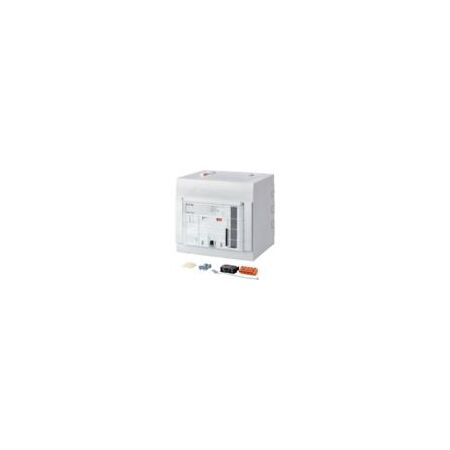

Remote Operator for NZM4 Circuit Breaker | 208-240V AC | Motor Drive & 10,000 Operations | Eaton
The Eaton NZM4-XR208-240AC remote operator is designed for 208-240V AC applications, featuring motor drive operation and a mechanical lifespan of 10,000 operations. Ideal for industrial electrical panels, it enhances safety and efficiency by enabling remote control of molded case circuit breakers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Remote Operator for NZM4 Circuit Breaker | 208-240V AC | Motor Drive & 10,000 Operations | Eaton
Brand: Eaton
SKU: Y7-266685
Alternatively Known As: Eaton NZM4 Remote Operator, NZM4 Motor Drive Operator, NZM4 Circuit Breaker Remote Control, NZM4-XR Remote Switch Operator
Technical Specifications
- Product Name: Eaton Moeller series NZM remote operator
- Catalog Number: 266685
- Voltage rating: 208 - 240 V AC, 50/60 Hz
- Power consumption: 350 VA (110 - 130 V AC)
- Switch drive type: Motor drive
- Number of poles: Three-pole/Four-pole
- Mechanical lifespan: 10,000 operations
- Signal duration at switch off: minimum 500 ms
- Signal duration at switch on: minimum 30 ms
- Terminal capacity: 0.75 mm² - 2.5 mm² with ferrule (18 - 14 AWG)
- Breaking time: 3000 ms
- Closing delay: 100 ms
- Voltage tolerance: 0.85 to 1.1 x Us
- Rated control supply voltage (Us) AC 50/60 Hz: 208 - 240 V
- Dimensions (H x L x W): 202mm x 189mm x 210mm
- Weight: 6.1 kg
Key Features
- Remote operator for NZM4 molded case circuit breaker
- Voltage rating: 208-240 V AC, 50/60 Hz
- Motor drive switch operation
- Three-pole or four-pole configurations
- Mechanical lifespan of 10,000 operations
- Signal duration at switch off: minimum 500 ms
- Signal duration at switch on: minimum 30 ms
- Terminal capacity supports 0.75 mm² to 2.5 mm² conductors with ferrules (18-14 AWG)
- Cannot be combined with switch-disconnector PN
- Do not install M22-CK11 dual auxiliary contacts in right-hand side auxiliary contact slot in NZM4-XR
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with switchgear and circuit breaker systems to ensure compliance with electrical safety standards and proper integration.
Applications
- Industrial electrical panels requiring remote operation of molded case circuit breakers
- Switchgear assemblies for power distribution and control
- Commercial and industrial electrical installations needing motor-driven circuit breaker operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables remote operation reducing the need for manual intervention, enhancing safety and operational efficiency
- Supports reliable circuit protection contributing to energy system stability
Warranty Information
Warranty terms as per Eaton standard product warranty policies; typically covers manufacturing defects for a specified period.
Available Now
The Eaton Moeller NZM4-XR208-240AC Remote Operator is available for immediate purchase, ideal for industrial and commercial electrical switchgear applications requiring remote circuit breaker operation.
