Remote Powered Signal Amplifier | 108-1218MHz | 42dB Gain | Low Noise by Matchmaster
Remote powered signal amplifier with 108-1218 MHz frequency range and 42dB gain—ideal for homes and commercial spaces. Built for superior signal clarity, with low noise figure and energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

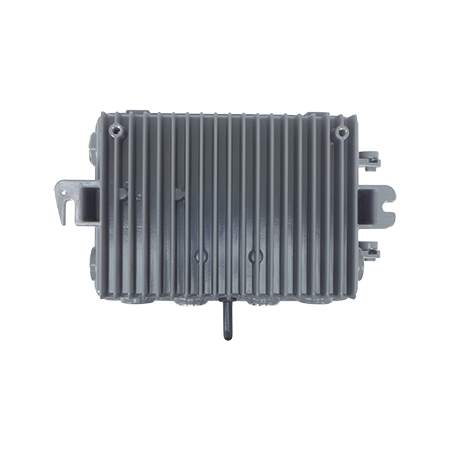

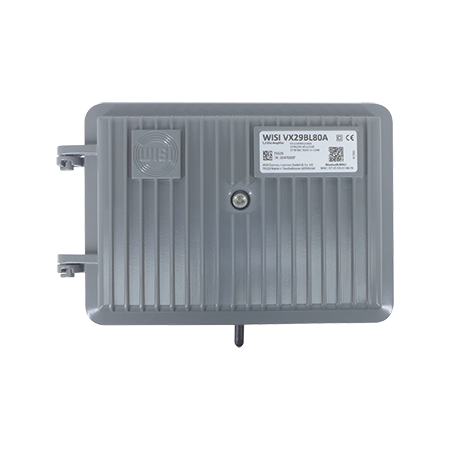

Product Name/Title: WISI 108-1218MHz 42dB Gain Remote Powered Amplifier
Brand: Matchmaster
SKU: 14MM-VX29B
Alternatively Known As: Remote Powered Distribution Amplifier, Outdoor CATV Amplifier, Line Powered Amplifier, WISI VX29B Amplifier
Technical Specifications
- Frequency range: 108-1218 MHz downstream, 5-204 MHz upstream
- Gain: 44 dB downstream, 32 dB upstream
- Noise figure: 9 dB downstream, 8 dB upstream
- Input attenuator: 0-20 dB downstream, 0-15 dB upstream
- Output level: up to 113 dBμV depending on modulation and slope
- Automatic level and slope control (ALSC) with pilot frequencies 40-1002 MHz
- Power consumption: 24 W
- Supply voltage: 27-90 V AC
- IP rating: IP66
- Operating temperature: -20 to +65°C
- Surge protection: 6 kV on RF ports
- RF connectors: PG11, 75Ω impedance
- Dimensions (H x L x W): 158mm x 86mm x 232mm
- Weight: 2.5 kg
Key Features
- 42dB gain remote powered distribution amplifier
- Waterproof and RF-screened die-cast housing
- Remote powered 27-65 V AC with network power inserter capability
- Settings adjustable via WISI Bluetooth app or OH41 hand controller
- Integrated diplex filters and return-path amplifier
- Automatic level and slope control (ALSC)
- Optional 2-way output with splitter
- IP66 rated with operating temperature range -20 to +65°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup, waterproof sealing, and compliance with electrical safety standards.
Applications
- Outdoor and harsh environment signal distribution
- Pedestal and outdoor enclosure installations
- CATV and broadband signal amplification
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Remote power capability reduces the need for additional power supplies, lowering energy consumption.
- Durable waterproof housing extends product lifespan, reducing waste.
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The WISI 108-1218MHz 42dB Gain Remote Powered Amplifier VX29B is available now for immediate purchase. Ideal for outdoor CATV and broadband signal distribution in harsh environments.
