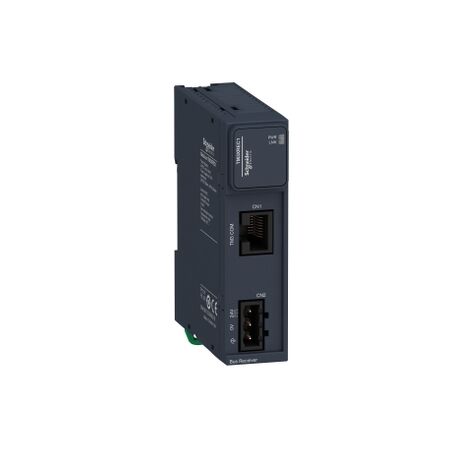

Remote Receiver Module | 24V DC | 7 I/O Expansions | Modicon TM3 by Clipsal

BRAND: Clipsal

SKU: TM3XREC1

$279.10 List price: $418.60

+ −

30 Days Return Delivery Options

Remote receiver module with 24V DC supply and support for 7 I/O expansions—ideal for industrial automation systems. Built for seamless integration with Modicon controllers, featuring local signaling and top hat rail mounting.

Description
Attachments

Product Name/Title: Modicon TM3, Remote receiver module

Brand: Clipsal

SKU: TM3XREC1

Alternatively Known As: Modicon Remote Receiver, TM3 Receiver Module

Technical Specifications

Rated supply voltage: 24 V DC
Maximum number of I/O expansion modules: 7
Power supply output current: 560 mA for expansion bus
Current consumption: 40 mA at 24 V DC
Maximum power dissipation: 1 W
Cable distance between devices: 0.5 mm extension cable with 2 RJ45 conductors
Electrical connection: RJ45 connector and removable screw terminal block
Resistance to electrostatic discharge: 8 kV in air
Operating altitude: 0...2000 m
Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail
Dimensions (H x L x W): 90mm x 73.3mm x 23.65mm
Weight: 0.075 kg

Key Features

Compatible with Modicon M221, M251, M241, and M262.
Local signaling with 2 green LEDs for power supply and link status.
Mounting support for top hat type TH35-15 and TH35-7.5 rails.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Automation systems, remote control applications

Standards & Compliance

Complies with IEC 61131-2 and UL 508.

Environmental Benefits

Packaging made with recycled cardboard.
PVC free.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Remote Receiver Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3XREC1 (TM3XREC1, 363 Kb) [Download]
