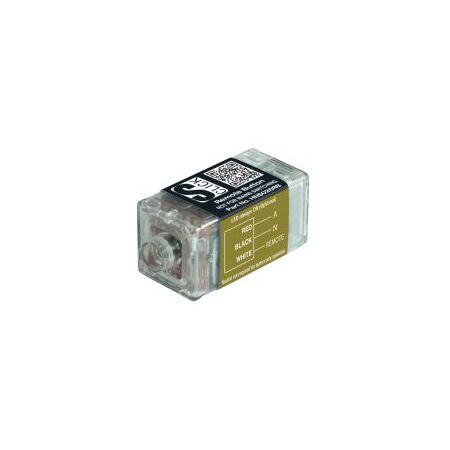

Remote Slave Button Mech for Dimmers and Timers White S-Click
S-Click remote slave button mech features single core strapper link to premium dimmer and 3-wire timer mechs, with white LED indicator. Ideal for Saturn plates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: S-Click Remote Button, S-Click Slave Button, Dimmer Remote Mech, 3-Wire Timer Remote Button
Technical Specifications
- Part Number: HNS020RB
- Operating Voltage: 220–240 V AC, 50 Hz
- Operating Temperature: 0°C to 50°C
- Compatible Dimmers: S-Click HNS610DT and HNS620DT
- Compatible Timers and Switches: S-Click HNS440TM, HNS450TM and HNS460SW
- LED Indicator: White; optional neutral connection required for LED operation
- Remote Connection: Up to 50 m with single-core cable or 20 m with twin-core cable
- Wall Plate Compatibility: CABAC, Clipsal and HPM-style wall plates
- Switching Function: Multi-way dimming and ON/OFF control
- Mains Switching: Not suitable for direct mains switching
- Compliance: AS/NZS 60669.2.1 and CISPR15
- Dimensions (H x L x W): 25mm x 35mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides an additional control point for compatible S-Click dimmers and 3-wire timers
- Supports multi-way dimming and ON/OFF operation
- White LED indicator can be configured for continuous or button-press illumination
- Button operation does not require a neutral connection
- Multiple remote buttons can be connected in parallel within the specified cable-length limits
- Supplied with push buttons for compatible Clipsal and HPM-style wall plates
- Designed for fixed-wire electrical installations
Professional Installation Requirements
- Installation must be carried out by a licensed electrical contractor or suitably qualified person as part of a fixed-wire electrical installation. The unit is not for direct mains switching. Confirm compatibility with the selected wall plate and connected S-Click dimmer or timer before installation.
Applications
- Multi-way lighting control in residential properties
- Remote control of compatible S-Click LED dimmers
- Additional control points for S-Click 3-wire bathroom and exhaust-fan timers
- Hallways, stairwells, bedrooms and rooms with multiple access points
- Retrofit installations requiring an additional momentary control point
Standards & Compliance
- AS/NZS 60669.2.1: Electrical accessories requirements for electronic switches
- CISPR15: Limits and measurement methods for radio disturbance characteristics of electrical lighting and similar equipment
Environmental Benefits
- Supports multi-way control of energy-efficient dimmable LED lighting systems
- Low-power LED indication provides an efficient locating light
- Modular remote-button design can extend an existing installation without replacing the primary dimmer or timer
- Durable electrical accessory design can reduce replacement frequency and material waste
Warranty Information
12-month warranty against manufacturing and material defects from the date of invoice to the initial purchaser, subject to correct installation, maintenance and operation within specification. Incorrect installation, misuse and mechanical damage are excluded.
Available Now
Available through S-Click, CABAC and authorised Australian electrical distributors, subject to distributor stock.
