Remote Transfer Switch 2 Pole 100A | 800V Rated | IP20 Protection by NHP
Remote transfer switch with 2 pole design and 100A rated current—ideal for industrial and commercial power distribution. Built for reliable transfer switching, with 800V max operating voltage and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

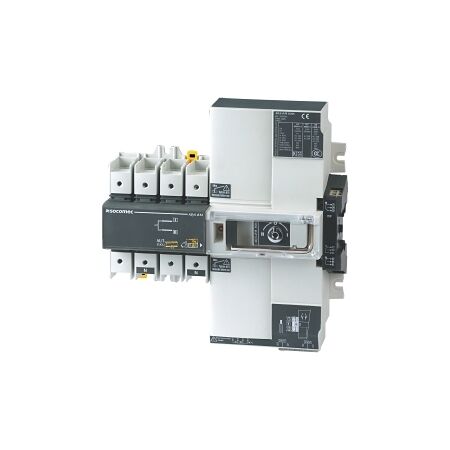

Product Name/Title: Socomec ATyS M Remote Transfer Switch - ATyS dM, No Integrated Logic,2 Pole 100A
Brand: NHP
SKU: 93232010
Alternatively Known As: Remote Transfer Switch, Automatic Transfer Switch, ATyS M Switch
Technical Specifications
- Rated Operating Voltage: 400-690V
- Max Rated Operation Voltage: 800V
- Rated Permanent Current: 100A
- Rated Operation Power: 51kW
- Rated Short Time Withstand Current: 4kA
- Rated Insulation Voltage: 600V
- Conditioned Rated Short Circuit Current: 50kA
- Number of Poles: 2
- Type of Electrical Connection: Screw connection
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 245mm x 73.5mm x 222mm
- Weight: 3.5 kg
Key Features
- 2 Pole design with a rated permanent current of 100A.
- Rated operating voltage up to 800V.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Any application requiring reliable transfer switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power management and reduced energy loss.
Warranty Information
Standard warranty applies.
Available Now
The Socomec ATyS M Remote Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
