Remote Transfer Switch 3 Pole 1250A | 1000V Rated | IP20 Protection by NHP
Remote transfer switch with 3 pole design and 1250A current—ideal for industrial and commercial power systems. Built for efficient power management, with IP20 protection and 1000V rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

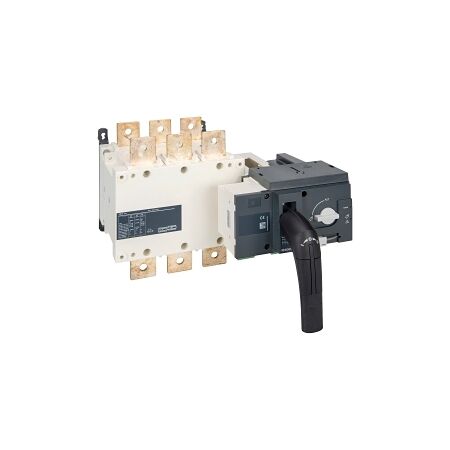

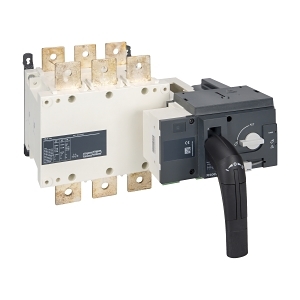

Product Name/Title: Socomec ATyS Remote Transfer Switch - ATyS r, No Integrated Logic, 3 Pole 1250A
Brand: NHP
SKU: 95233120
Alternatively Known As: Remote Transfer Switch, ATyS Switch, Socomec Transfer Switch
Technical Specifications
- Rated Operating Voltage: 1000 V
- Max Rated Operation Voltage: 1000 V
- Rated Permanent Current: 1250 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power: 750 kW
- Rated Short Time Withstand Current: 35 kA
- Rated Insulation Voltage: 1000 V
- Switching Power at 400 V: 10000 kW
- Conditioned Rated Short Circuit Current: 100 kA
- Number of Poles: 3
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 306.5mm x 391.5mm x 504mm
- Weight: 45 kg
Key Features
- 3 Pole design with a rated permanent current of 1250 A.
- IP20 protection rating for front side.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Data centers, critical power applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power management reduces energy waste.
Warranty Information
Standard warranty terms apply.
Available Now
The Socomec ATyS Remote Transfer Switch is available now for immediate purchase, ideal for industrial and commercial power management.
Non-Returnable & Non-Cancellable
