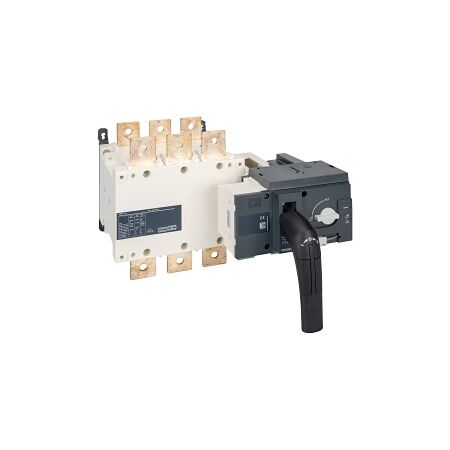

Remote Transfer Switch 3 Pole 3200A | 1000V Rated | IP20 Protection by NHP
Remote transfer switch with 3 pole design and 3200A current—ideal for industrial and commercial power distribution. Built for efficiency, with 1000V rating and IP20 front protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socomec ATyS Remote Transfer Switch - ATyS r, No Integrated Logic, 3 Pole 3200A
Brand: NHP
SKU: 95233320
Alternatively Known As: Remote Transfer Switch, ATyS Switch, Power Transfer Switch
Technical Specifications
- Rated Operating Voltage: 1000 V
- Max Rated Operation Voltage (AC): 1000 V
- Rated Permanent Current (AC 21, 400 V): 3200 A
- Rated Control Supply Voltage (AC 50 Hz): 400-690 V
- Rated Operation Power (AC 23, 400 V): 900 kW
- Rated Short Time Withstand Current: 50 kA
- Rated Insulation Voltage: 1000 V
- Type of Electrical Connection: Bolt connection
- Switching Power at 400 V: 12800 kW
- Number of Auxiliary Contacts: 3 Normally Open, 4 Change Over
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 184mm x 521mm x 334mm
- Weight: 78 kg
Key Features
- 3 Pole design with a rated permanent current of 3200 A.
- IP20 protection rating for front side.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Data centers, critical power applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Efficient power management reduces energy waste.
Warranty Information
Standard warranty terms apply.
Available Now
The Socomec ATyS Remote Transfer Switch is available for immediate purchase, ideal for industrial and commercial power distribution needs.
Non-Returnable & Non-Cancellable
