Remote Zone Temperature Sensor Ness

BRAND: Ness
SKU: 101-230B
$247.50 List price: $330.00
+ −
30 Days Return Electricians Unlock Trade Access
Ness remote zone temperature sensor connects to M1 alarm systems for temperature monitoring. Ideal for M1 temperature monitoring.

Alternatively Known As: Ness M1 Zone Temperature Sensor, M1ZTSR, M1 Remote Temperature Sensor, Ness Zone Temperature Interface and Sensor

Technical Specifications
  • Product Code: 101-230B
  • Compatibility: Ness M1 alarm control panels
  • Temperature Measurement Range: -45°C to +60°C
  • Connection: 3-wire communication to M1 control
  • Zone Compatibility: Any main board zone from 1 to 16
  • Maximum Interfaces: Up to 16 per M1 control
  • Maximum Cable Distance: 300 m from M1 control
  • Operating Voltage: 12 V DC
  • Current Draw: 10 mA
  • Remote Probe: 1.2 m included
  • Environmental Rating: Indoor or outdoor use in a covered environment
  • Dimensions (H x L x W): 60mm x 32mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Enables remote temperature monitoring through a Ness M1 alarm system
  • Supports freeze monitoring, second-home monitoring and agricultural applications
  • Temperature readings can be accessed through the keypad, telephone remote control, app or M1 programming rules
  • Can be connected to any main M1 zone from 1 to 16

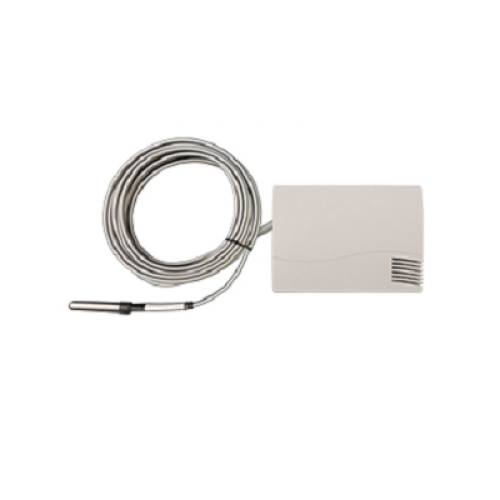

  • Compact interface housing with separate remote probe
  • Suitable for installation where the interface is protected from direct weather exposure
Professional Installation Requirements
  • Installation and programming should be performed by a suitably qualified security alarm technician. The interface requires connection to a 12 V DC auxiliary supply and an M1 zone, followed by programming of the zone as a temperature zone in accordance with the manufacturer's instructions.
Applications
  • Freeze monitoring
  • Remote temperature monitoring in second homes
  • Agricultural temperature monitoring
  • Temperature monitoring in covered outdoor areas
  • Alarm and automation rules based on temperature conditions
Standards & Compliance
  • AS/NZS 2201.1:2007 is relevant to the design, installation, commissioning and maintenance of the connected intruder alarm system; Ness does not state product-specific certification for this sensor.
Environmental Benefits
  • Low-voltage 12 V DC operation with a modest 10 mA current draw
  • RoHS compliance is supported by Ness Corporation's published RoHS compliance documentation
  • Remote monitoring can help identify freezing or abnormal temperature conditions early, potentially reducing equipment and property damage
  • Long-term use as an add-on interface can reduce the need for replacement of the complete alarm system
Warranty Information

Ness Corporation's general warranty provides 3 years from the date of purchase for Ness manufactured or supplied products, subject to the manufacturer's warranty conditions.

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors.
