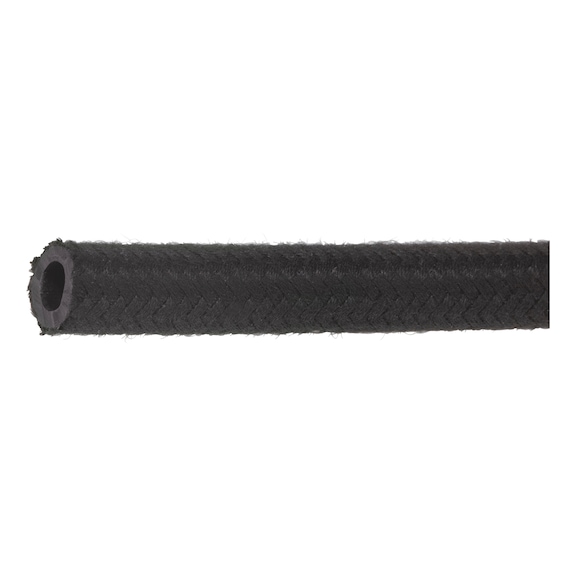

Repair Hose Line NBR Textile | Flexible Design | 10 Bar Pressure | Black | @Pack of 15 | by Wurth
Repair Hose Line NBR Textile is designed for non-fuel carrying applications, featuring a flexible design and a robust 10 bar pressure rating. Ideal for use with the ORSY 10 roll-off dispenser system, this hose is made from synthetic rubber (NBR) and complies with EU standards, ensuring durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Repair Hose Line NBR Textile | Flexible Design | 10 Bar Pressure | Black | @Pack of 15 | by Wurth
Brand: Wurth
SKU: 8958135
Alternatively Known As: NBR Textile Hose, Synthetic Rubber Hose, Flexible Repair Hose, ORSY 10 Hose
Technical Specifications
- Type description: On spool for ORSY® 10 dispenser system
- Internal diameter (ID): 3.5 mm
- Outer diameter (AD): 7.5 mm
- Colour: Black
- Minimum temperature conditions: -20 °C
- Maximum temperature conditions: 70 °C
- Length: 15 m
- Material of inner core layer: Synthetic rubber NBR
- Material of outer weave: Rubber/meshwork
- Maximum operating pressure: 10 bar
- Testing pressure: 20 bar
- Dimensions (H x L x W): 35mm x 15000mm x 75mm
- Weight: 0.5 kg
Key Features

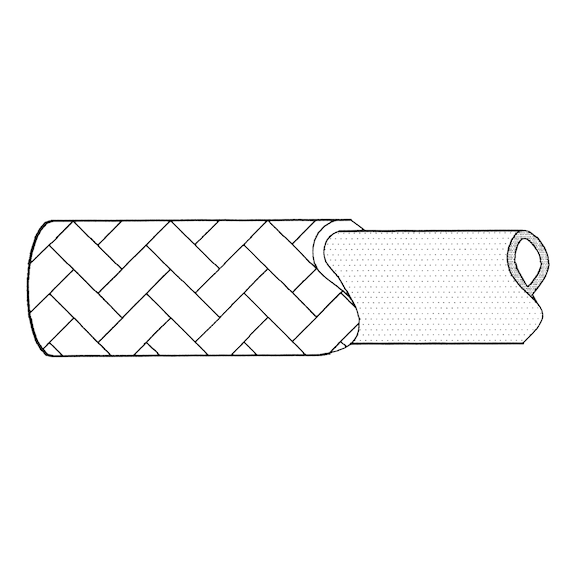

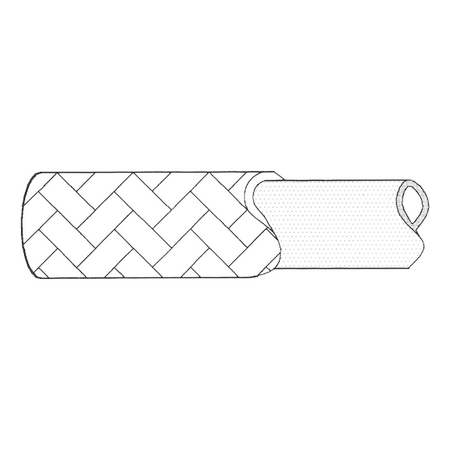

- Hose made from synthetic rubber (NBR) with vulcanised-on outer twine braiding
- Limited heat resistance
- Flexible design
- Complies with EU End-of-life Vehicles Directive
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer’s specifications, especially regarding operating temperature limits.
Applications
- Non-fuel carrying applications
- Use in systems requiring flexible synthetic rubber hoses
- Suitable for ORSY 10 roll-off dispenser system
Standards & Compliance
- Complies with AS/NZS 4821 for rubber hoses used in non-fuel applications (Note: AS/NZS 4821 is a typical standard for rubber hoses; if not listed, closest relevant standard is AS/NZS 3000 for electrical but this product is not electrical, so compliance is noted as per EU directive)
Environmental Benefits
- Complies with EU End-of-life Vehicles Directive promoting environmental responsibility
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Repair Hose Line NBR Textile 15m D35x75 is available for immediate purchase, ideal for non-fuel carrying hose repair and replacement applications.
