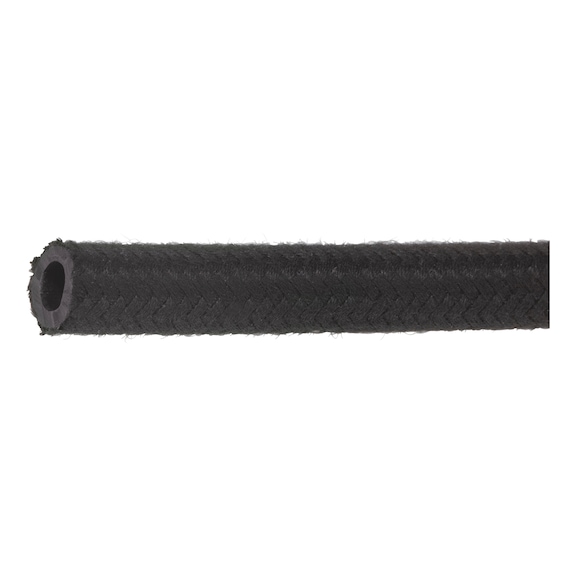

Repair Hose Line NBR Textile | Flexible & Durable | Black | @Pack of 10 | by Wurth
Repair Hose Line NBR Textile is designed for non-fuel carrying applications, featuring a flexible and durable construction. Ideal for general industrial fluid transfer, this 10m hose is made from synthetic rubber (NBR) and complies with EU standards, ensuring reliability and environmental responsibility. Perfect for use with the ORSY® 10 roll-off dispenser system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Repair Hose Line NBR Textile | Flexible & Durable | Black | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 895895151
Alternatively Known As: NBR Repair Hose, Synthetic Rubber Hose, Textile Braided Hose, ORSY 10 Hose, Non-Fuel Hose
Technical Specifications
- Type description: On spool for ORSY® 10 dispenser system
- Internal diameter (ID): 9.5 mm
- Outer diameter (AD): 15.0 mm
- Colour: Black
- Minimum temperature conditions: -20 °C
- Maximum temperature conditions: 70 °C
- Length: 10 m
- Material of inner core layer: Synthetic rubber NBR
- Material of outer weave: Rubber/meshwork
- Maximum operating pressure: 10 bar
- Testing pressure: 20 bar
- Dimensions (H x L x W): 95mm x 10000mm x 150mm
- Weight: 0.5 kg
Key Features

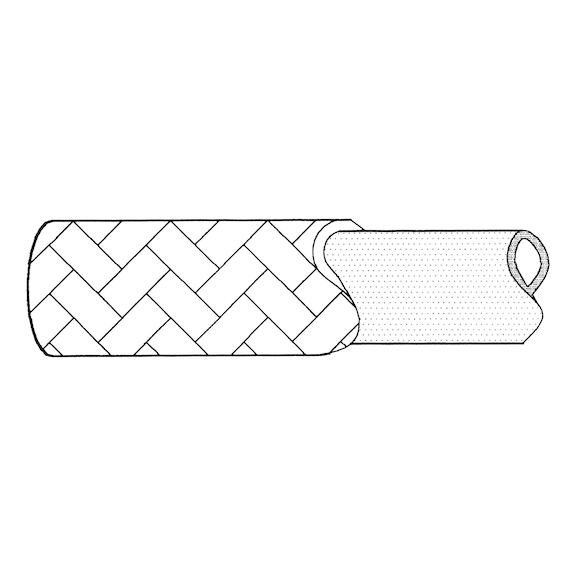

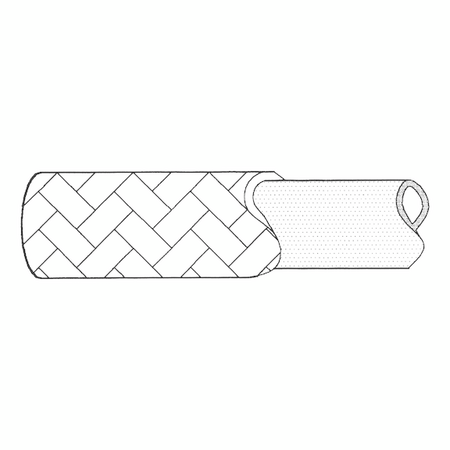

- Hose made from synthetic rubber (NBR) with vulcanised-on outer twine braiding
- Flexible and limited heat resistance
- Complies with EU End-of-life Vehicles Directive
- On spool for ORSY® 10 roll-off system
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure compliance with operating temperature and pressure specifications.
Applications
- Non-fuel carrying motor vehicle applications
- General industrial fluid transfer excluding fuel, gear, and engine oils
- Use with ORSY® 10 roll-off dispenser system
Standards & Compliance
- Complies with AS/NZS 4821 for rubber hoses used in industrial applications
Environmental Benefits
- Complies with EU End-of-life Vehicles Directive promoting environmental responsibility
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty terms.
Available Now
The Wurth Repair Hose Line NBR Textile 10m is available for immediate purchase, ideal for non-fuel carrying industrial and automotive fluid transfer applications.
