Request-To-Exit PIR Sensor | Adjustable Sensitivity & Timer | Compact Design by Ness
Request-to-exit PIR sensor with adjustable sensitivity and timer—ideal for access control applications. Built for commercial and residential use, with compact design and dual pyro technology for enhanced stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

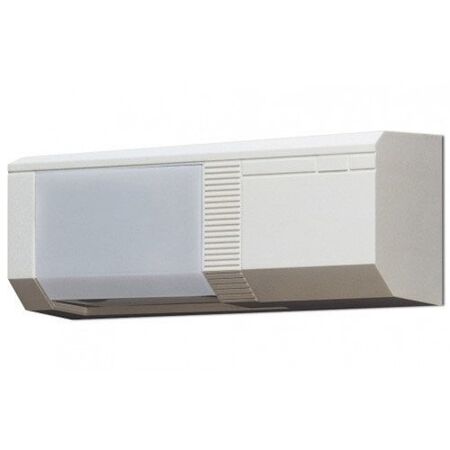

Product Name/Title: Takex PS-520E Request-To-Exit PIR
Brand: Ness
SKU: 106-214
Alternatively Known As: PIR Exit Sensor, Request-To-Exit Sensor, Doorway PIR Sensor
Technical Specifications
- Pattern width: 1.2m (single door) or 2.4m (double door)
- Relay outputs: 2 x form C relays (up to 1A)
- Sensitivity: Adjustable
- Timer: Adjustable from 0.25 to 60 seconds
- Input voltage: 12/24VAC or 12/24VDC
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Selectable pattern width for single or double doors.
- Passive infrared technology for human body detection.
- Mounts up to 4m high.
- 12/24VAC or 12/24VDC input.
- Two form C relays with selectable fail-safe or fail secure options.
- Adjustable sensitivity and timer (0.25 to 60 seconds).
- Overhead or wall-mount capability.
- Dual Pyro for increased stability against external light.
- High immunity to RFI and electrical noise.
- Compact design.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Access control applications
- Door strike release
- Alarm system shunting
- Automatic door operation
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Reduces energy consumption by ensuring doors are only activated when needed.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Takex PS-520E Request-To-Exit PIR Sensor is available now for immediate purchase. Ideal for access control in commercial and residential settings.
