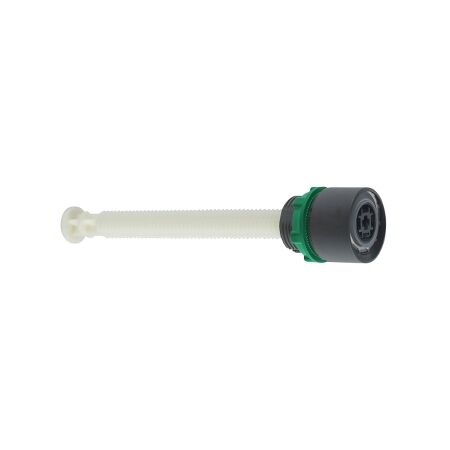

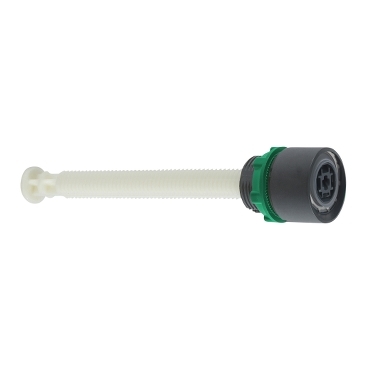

Reset XB5A Pushbutton | Manual Overload Reset | IP66 & IP69K Rated | 22mm Mounting Diameter | by Clipsal
The Reset XB5A Pushbutton is a manual overload reset button designed for industrial control panels and automation systems. With a robust design and IP66/IP69K ingress protection, it ensures reliable operation in harsh environments. Ideal for machinery and equipment reset, this pushbutton features a 22mm mounting diameter and is easy to install, making it perfect for qualified electricians looking to enhance safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reset XB5A Pushbutton | Manual Overload Reset | IP66 & IP69K Rated | 22mm Mounting Diameter | by Clipsal
Brand: Clipsal
SKU: SCHXB5AA801
Alternatively Known As: XB5A reset button, Harmony XB5 pushbutton, Clipsal manual reset button, SCHXB5AA801, industrial reset pushbutton
Technical Specifications
- Type: Manual overload reset push button
- Series: Harmony XB5
- Mounting diameter: 22 mm
- Actuation distance: 17 to 120 mm
- Material: High-impact plastic
- Contact type: Momentary
- Ingress protection: IP66, IP69, IP69K
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Manual overload reset push button
- Harmony XB5 series
- Ø22 mm mounting diameter
- Suitable for actuation distances from 17 to 120 mm
- Robust and reliable design for industrial environments
- Easy to install and operate
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct operation.
Applications
- Industrial control panels
- Machinery and equipment reset
- Automation systems
- Electrical distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Supports efficient machinery operation, minimizing downtime and energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Reset XB5A Pushbutton SCHXB5AA801 is available for immediate purchase. Ideal for industrial control panels, machinery, and automation systems.
