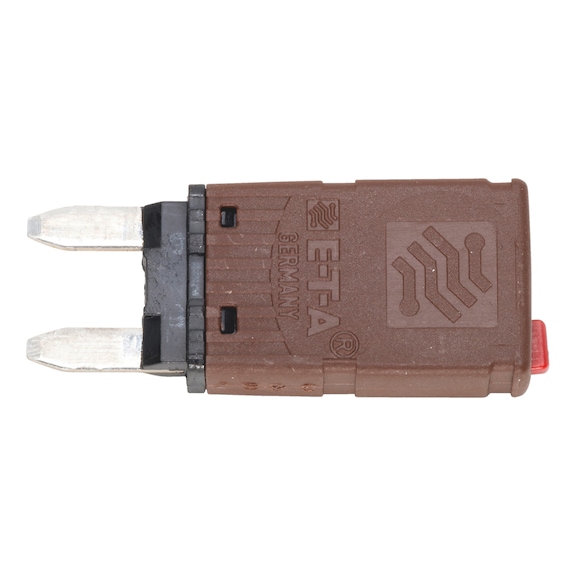

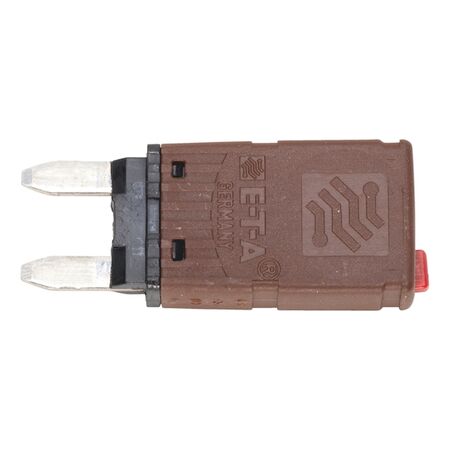

Resettable Fuse MINI | 7.5A Max Current | Thermal Trip Switch | Brown Color | by Wurth
The Resettable Fuse MINI is designed for continuous operation in permanent electrical installations, featuring a 7.5A max current and a color-coded thermal trip switch for easy identification. Ideal for protecting electronic devices from overcurrent, this fuse eliminates the need for frequent replacements, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Resettable Fuse MINI | 7.5A Max Current | Thermal Trip Switch | Brown Color | by Wurth
Brand: Wurth
SKU: 731100307
Alternatively Known As: Resettable circuit breaker, Thermal reset fuse, Manual reset fuse, Miniature resettable fuse
Technical Specifications
- Max. current: 7.5 A
- Max. nominal voltage: 29 V/DC
- Operating temperature range: -40 to 85 °C
- Contact surface: Tin plated
- Colour: Brown
- Dimensions (H x L x W): 20mm x 50mm x 30mm
- Weight: 0.05 kg
Key Features
- Colour-coded thermal trip switch for easy identification
- Easy to reset by hand using red reset switch
- Eliminates the need to change fuses in defective circuits
- Reset button must not be blocked and can only be actuated in the de-energised state
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Permanent installation in electrical circuits requiring continuous operation
- Protection of electronic devices and circuits from overcurrent
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electronic waste by eliminating the need to replace fuses
- Supports sustainable electrical maintenance with reusable reset functionality
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Resettable Fuse MINI FLBLDEFSE FSEAUTM MINI FIXMNT 75A is available for immediate purchase, ideal for continuous operation in permanent electrical installations.
