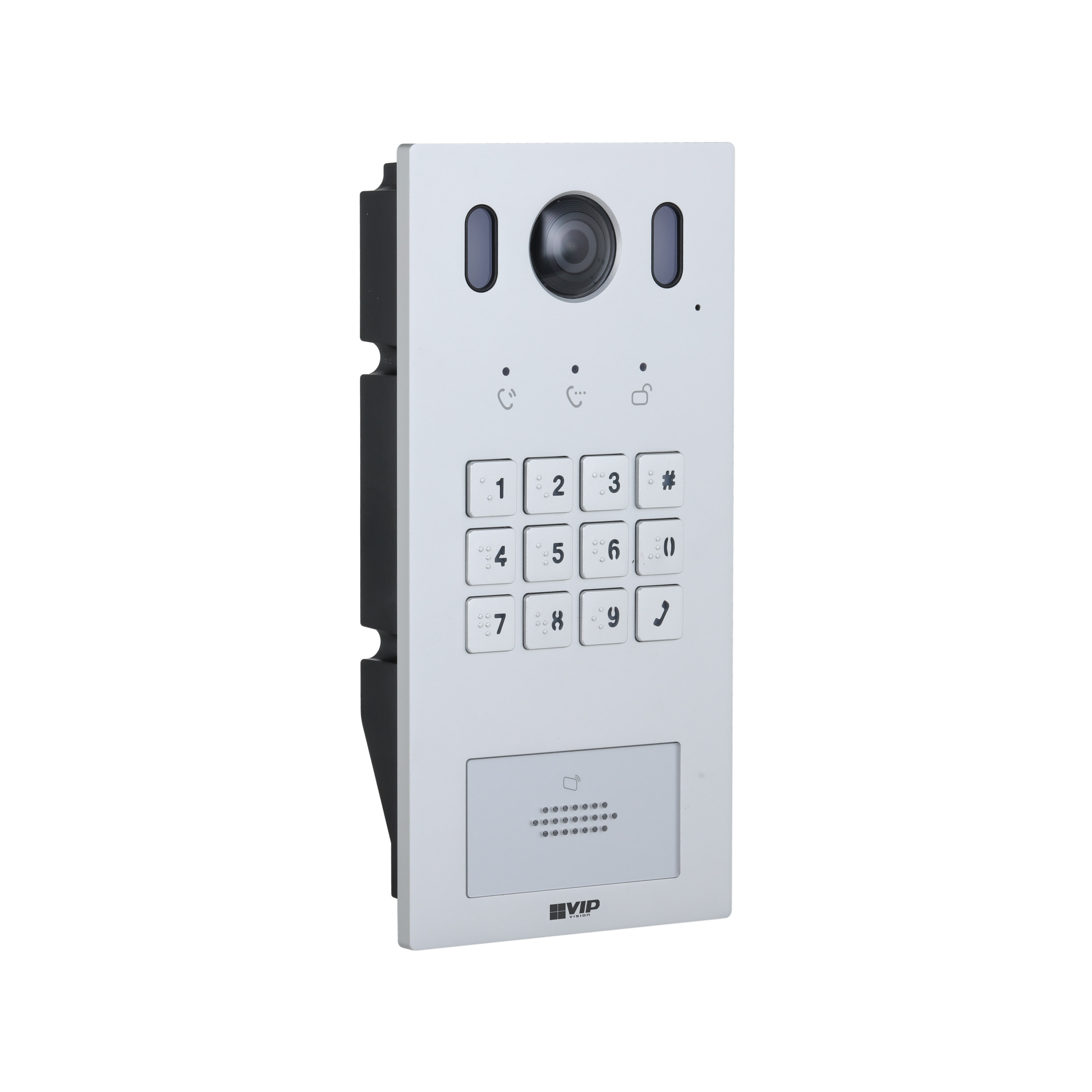

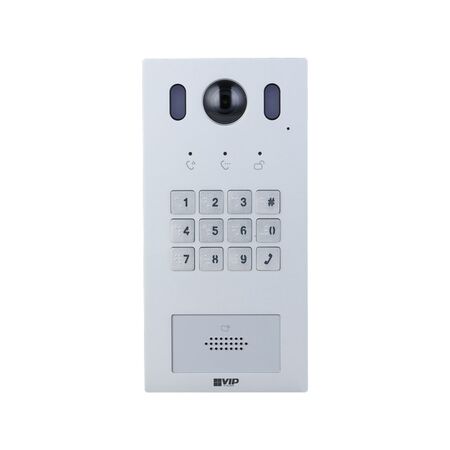

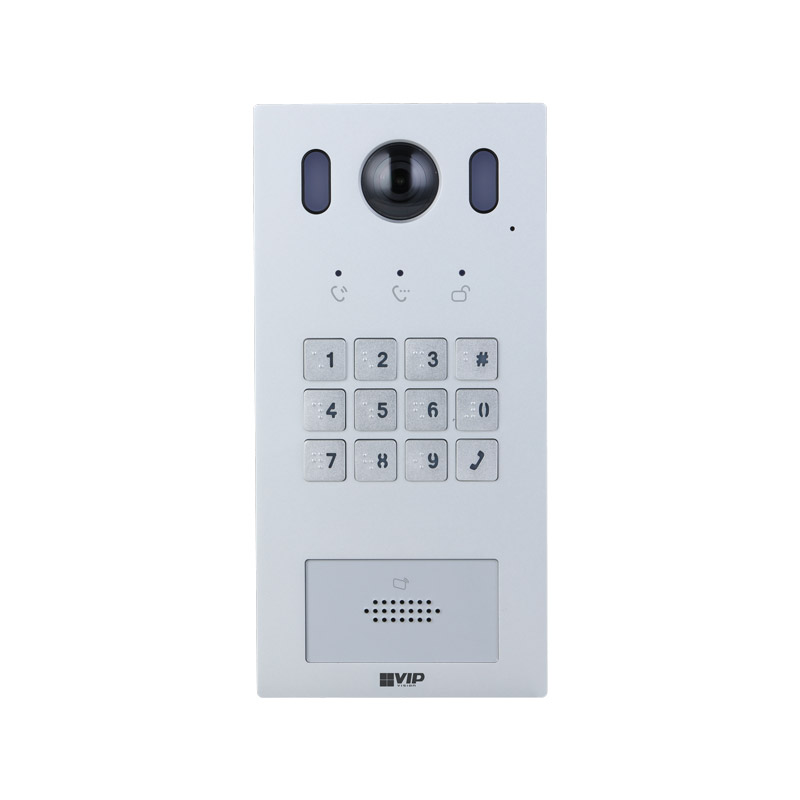

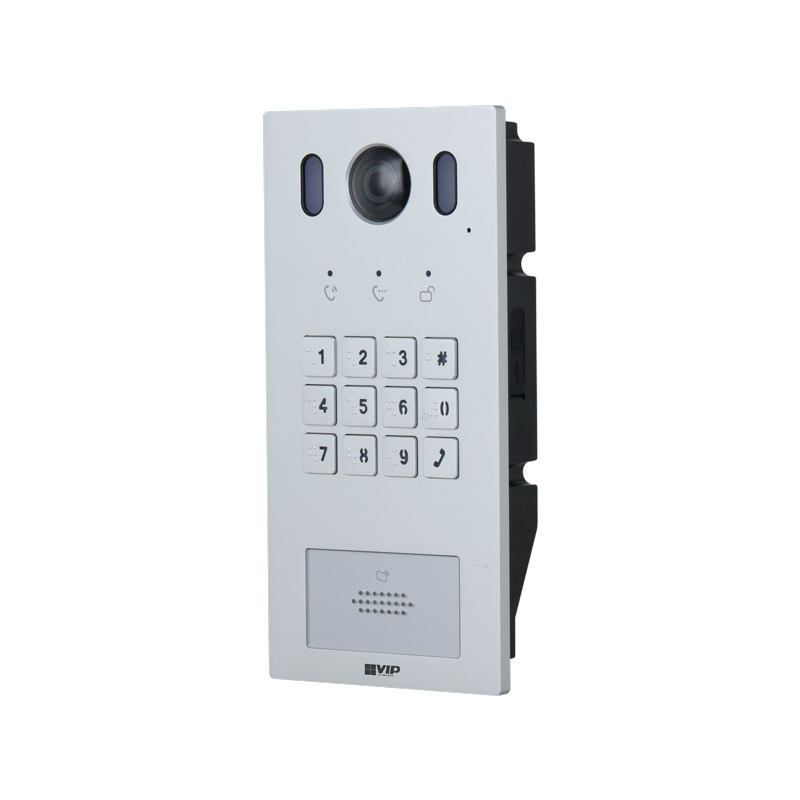

Residential D2 Series IP Door Station | 1080p Full HD | 140° Field of View | Keypad & NFC Access | by Cornick
The Residential D2 Series IP Door Station features a 2.0MP sensor with 1080p Full HD resolution and a wide 140° field of view, making it perfect for secure residential and small commercial access control. With keypad code unlock and NFC card reader support, it allows for convenient entry management. Built to withstand the elements with an IP65 rating and IK08 impact protection, this door station ensures reliable performance in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residential D2 Series IP Door Station | 1080p Full HD | 140° Field of View | Keypad & NFC Access | by Cornick
Brand: Cornick
SKU: INTIPRDSD2
Alternatively Known As: IP Video Door Station, IP Intercom Door Station, VIP Vision D2 Door Station, Residential IP Access Control Panel
Technical Specifications
- Sensor: 1/2.9’’ 2.0MP CMOS
- Resolution: 1080p Full HD
- Field of View: 140° horizontal
- Access Control: Keypad code unlock and 13.56MHz NFC card reader
- Power Input: 48VDC or PoE (802.3af/at)
- Ingress Protection: IP65 front plate
- Impact Protection: IK08 vandal resistant
- Communication: Bidirectional talk
- Monitor Support: Up to 10 monitors can be called simultaneously
- Supplemental Lighting: White LED for visitor illumination
- Dimensions (H x L x W): 200mm x 40mm x 120mm
- Weight: 1.2 kg
Key Features
- 1/2.9’’ 2.0MP sensor with 1080p Full HD resolution
- Wide angle lens with 140° horizontal field of view
- Keypad for code unlock and NFC reader for card access
- Supports up to 10 monitors ringing simultaneously
- Intuitive mechanical button interface
- 48VDC / PoE (802.3af/at) power input support
- IP65 and IK08 rated weather and vandal resistant front plate
- Supplemental white light for visitor illumination

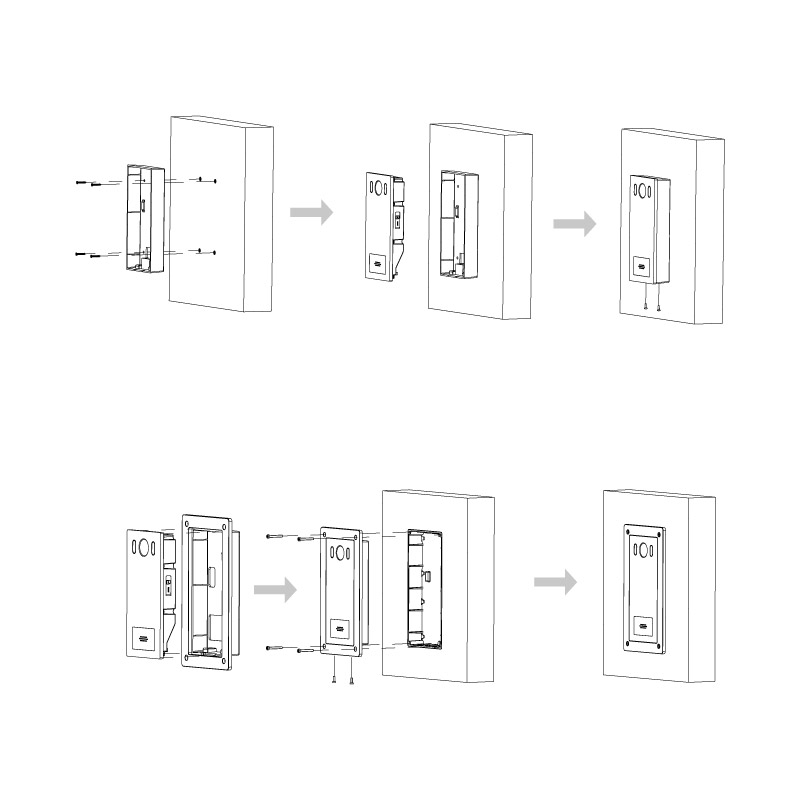

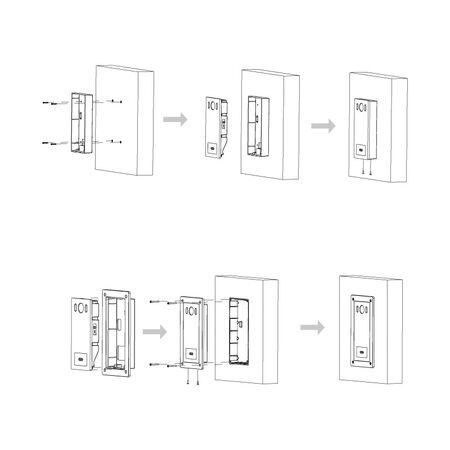

Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper sealing against water ingress and correct network and power setup.
Applications
- Residential: Large single-dwelling premises
- Commercial: Small office access control
- Security: Entry communication and access management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PoE support reduces the need for additional power cabling, lowering installation impact.
- Durable weather-resistant design extends product lifespan, reducing waste.
Warranty Information
2 years warranty covering manufacturing defects and hardware failures.
Available Now
The Cornick Residential D2 Series IP Door Station is available for immediate purchase, ideal for secure residential and small commercial access control applications.
