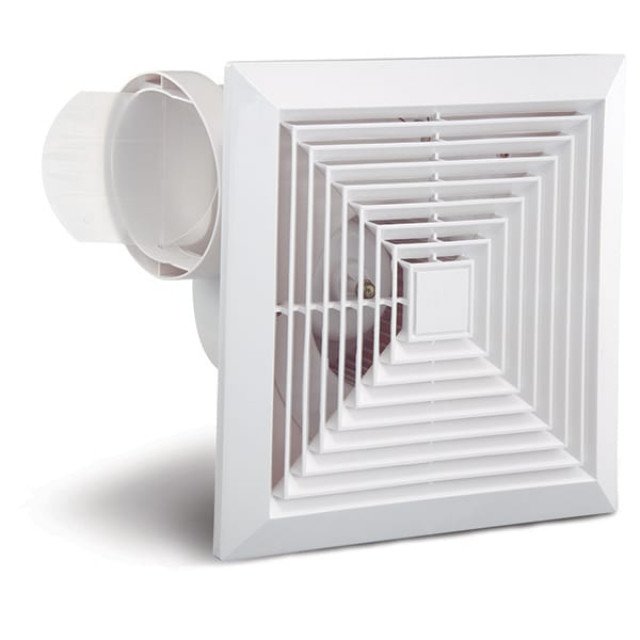

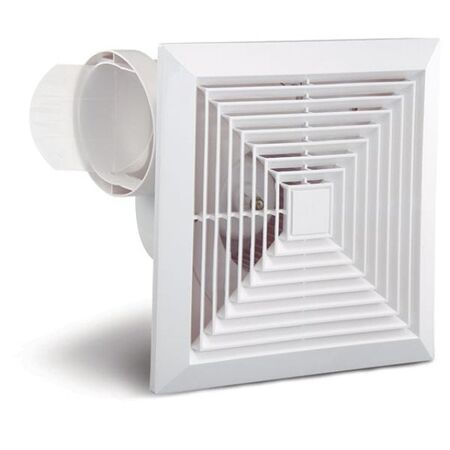

Residential Ventilation Fan | 240V | 34W Power & 144 m3/hr Airflow | Non-return Damper by Allvent

BRAND: Allvent
SKU: ALV105
$90.90 List price: $110.00
+
Enhance your home's air quality with the HBF Series residential ventilation fan, featuring 240V voltage, 34W power, and 144 m3/hr airflow. Ideal for ducted systems and replacements, it includes a non-return damper to prevent backflow and a clip fixing system for easy installation.

Product Name/Title: Residential Ventilation Fan | 240V | 34W Power & 144 m3/hr Airflow | Non-return Damper by Allvent

Brand: Allvent

SKU: ALV105

Alternatively Known As: Residential Ventilation Fan, Duct Fan, Centrifugal Ventilation Fan, Non-return Ventilation Fan

Technical Specifications
  • Voltage: 240V
  • Power: 34W
  • Speed: 1130 r/min
  • Airflow: 144 m3/hr (40 L/s)
  • Noise Level: 22 dBA at 3 meters
  • Duct Diameter: 100 mm
  • Dimensions (H x L x W): 120mm x 150mm x 120mm
  • Weight: 1.5 kg
Key Features
  • Hi-static duct characteristics for efficient airflow
  • High-performance centrifugal impeller
  • Integrated non-return damper to prevent backflow
  • Clip fixing system for fast and easy installation
  • Timer models available
  • Replacement option for XC/NVF models
Professional Installation Requirements
  • Professional installation by a qualified electrician or ventilation specialist is recommended to ensure optimal performance and compliance with safety standards.
Applications
  • Residential ventilation for homes and apartments
  • Replacement for XC/NVF ventilation models
  • Suitable for ducted ventilation systems
Standards & Compliance
  • Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
  • Energy-efficient motor reduces power consumption
  • Improves indoor air quality by effective ventilation
  • Integrated non-return damper prevents energy loss
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Allvent HBF Series Residential Ventilation Fan is available now for immediate purchase. Ideal for residential ducted ventilation and replacement applications.


Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
