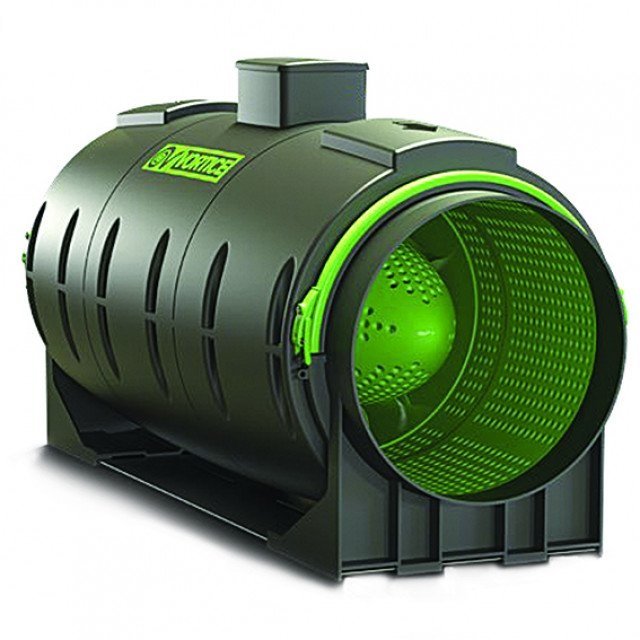

Residential Ventilation Fan | 240V EC Brushless Motor | 570 m³/h Airflow | Quiet Operation by Allvent
The Vortice Lineo QUIET ES Series is a residential ventilation fan with a 240V EC brushless motor and maximum airflow of 570 m³/h—ideal for small spaces. Built for efficient ventilation in homes and apartments, it features minimal noise emissions and easy maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residential Ventilation Fan | 240V EC Brushless Motor | 570 m³/h Airflow | Quiet Operation by Allvent
Brand: Allvent
SKU: ALV17174
Alternatively Known As: Vortice Lineo Quiet ES Fan, Residential Ventilation Fan, Brushless EC Motor Fan
Technical Specifications
- Voltage: 240V, 50Hz
- Speed: 4V
- Motor Power: 15.2W
- Current: 0.18 Amps
- RPM: 1380
- Maximum Airflow: 570 m³/h
- Maximum Pressure: 158.3 Pa
- Noise Level: 84.3 dB(A) at 3 meters
- Maximum Operating Temperature: 19.7°C
- Motor Type: EC brushless with thermal overload cutout
- Bearing Type: Ball bearings
- Dimensions (H x L x W): 200mm x 200mm x 200mm
- Weight: 50 kg
Key Features
- Designed to fit into small spaces
- Easily removed to facilitate maintenance
- Vortice EC brushless motor with thermal overload cutout
- Shaft turning in ball bearings for durability
- Coupled to mixed flow axial-centrifugal impeller
- Optimised airflow for maximised performance and increased efficiency
- Minimal noise emissions
- Ball bearing motors rated for at least 30,000 hours operation without mechanical malfunction
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure safety and optimal performance.
Applications
- Residential ventilation for small spaces
- Ventilation in homes and apartments
- Airflow optimization in confined areas
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient EC brushless motor reduces power consumption
- Optimised airflow increases ventilation efficiency
- Long motor life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Allvent for specific warranty details.
Available Now
The Vortice Lineo QUIET ES Series ventilation fan is available now for immediate purchase. Ideal for residential ventilation applications requiring efficient, quiet airflow in small spaces.
