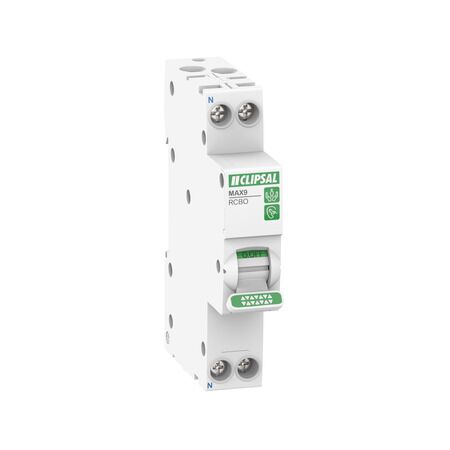

MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 1PN, 10A, 10mA, C Curve, 6000A, A Type, SLIM

Residual Current Breaker 10A | 10mA Sensitivity | Slim Design by Clipsal

BRAND: Clipsal

SKU: MX9R1110

$80.90 List price: $121.40

+ −

30 Days Return Delivery Options

Residual current breaker with 10A current and 10mA sensitivity—ideal for residential and commercial safety. Built for compact installations, with C Curve overload protection and 6000A breaking capacity.

Description
Attachments

Product Name/Title: MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 1PN, 10A, 10mA, C Curve, 6000A, A Type, SLIM

Brand: Clipsal

SKU: MX9R1110

Alternatively Known As: RCBO, Residual Current Circuit Breaker, Circuit Protection Device

Technical Specifications

Rated operational voltage: 240 V AC 50/60 Hz
IP Rating: IP20
Ambient air temperature for operation: -25...70 °C
Number of protected poles: 1
Network type: AC
Network frequency: 50/60 Hz
Limitation class: 3
Rated insulation voltage: 440 V AC 50/60 Hz
Rated impulse withstand voltage: 4 kV
Dimensions (H x L x W): 93mm x 73mm x 18mm
Weight: 0.136 kg

Key Features

Residual current breaker with overcurrent protection (RCBO)
Rated current: 10 A
Earth-leakage sensitivity: 10 mA
Breaking capacity: 6000 A
Type A earth-leakage protection
C Curve for overload protection
Slim design for space-saving installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Electrical safety in various installations

Standards & Compliance

Conforms to AS/NZS 61009.1 for safety and performance standards.

Environmental Benefits

Compliant with RoHS directives and sustainable packaging.

Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
