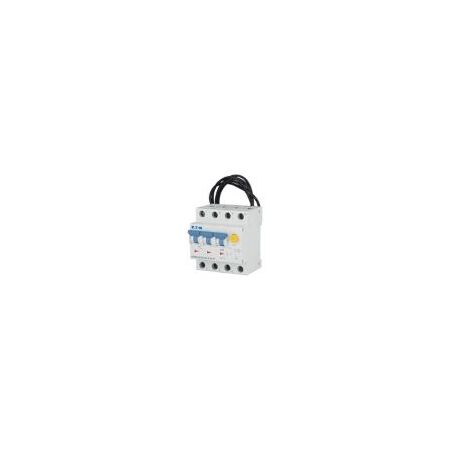

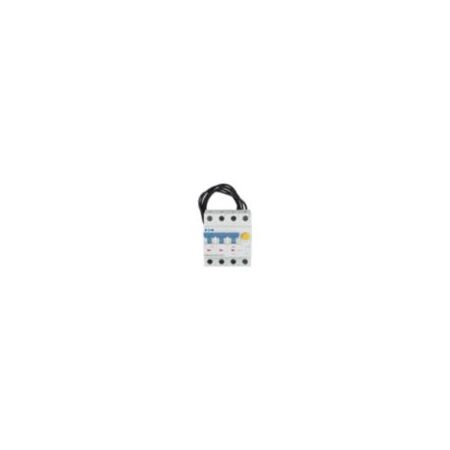

Residual Current Breaker 20A 3-Pole Type C | 30mA Sensitivity | DIN Rail Mounted | IP20 by Eaton
This 20A 3-pole residual current breaker features a Type C tripping characteristic and 30mA fault current sensitivity—ideal for residential and commercial switchgear applications. Built for safety and reliability, it ensures compliance with AS/NZS 3000 standards and is designed for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residual Current Breaker 20A 3-Pole Type C | 30mA Sensitivity | DIN Rail Mounted | IP20 by Eaton
Brand: Eaton
SKU: Y7-169644
Alternatively Known As: RCBO 20A 3p Type C Residual Current Breaker, Eaton xPole mRB64/M4, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 230 V AC
- Surge Current Capacity: 250 kA
- Rated Switching Capacity: 10 kA
- Tripping Characteristic: C (Non-delayed)
- Number of Poles: 3
- Fault Current Rating: 30 mA
- Rated Operational Voltage (Ue) Max: 415 V
- Rated Insulation Voltage (Ui): 440 V
- Operating Ambient Temperature: -25 °C to 40 °C
- Degree of Protection: IP20
- Overvoltage Category: III
- Pollution Degree: 2
- Impulse Withstand Voltage (Uimp): 4 kV
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Mounting Method: DIN rail
- Leakage Current Type: Type A (pulse-current sensitive)
- Current Limiting Class: 3
- Equipment Heat Dissipation, Current-Dependent: 11.8 W
- Dimensions (H x L x W): 75mm x 86mm x 73mm
- Weight: 0.485 kg
Key Features
- Residual-current circuit breaker with overcurrent protection
- 20 A amperage rating
- 30 mA fault current sensitivity
- MCB trip type C for non-delayed tripping
- 3-pole configuration
- Type A pulse-current sensitive leakage current
- Rated switching capacity of 10 kA
- DIN rail mounting
- Operating ambient temperature range from -25 °C to 40 °C
- Degree of protection IP20
- Overvoltage category III
- Connectable conductor cross section from 1 mm² to 25 mm²
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper operation.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole mRB64/M4 RCBO 20A 3p Type C is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
