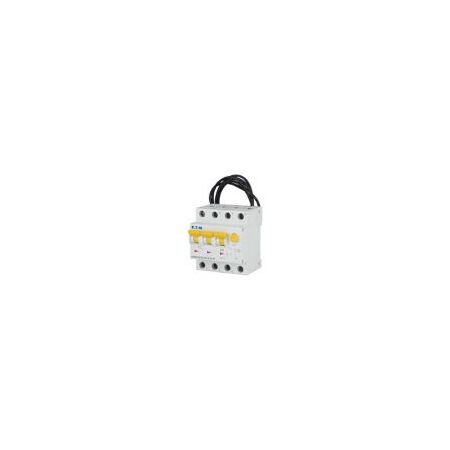

Residual Current Breaker 25A 3 Pole Type C | 250 kA Surge Capacity | IP20 Protection by Eaton
This 25A 3 pole residual current breaker is designed for residential and commercial switchgear applications. With a surge current capacity of 250 kA and IP20 protection, it ensures electrical safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residual Current Breaker 25A 3 Pole Type C | 250 kA Surge Capacity | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-169645
Alternatively Known As: RCBO 25A 3 Pole Type C Residual Current Breaker, Eaton xPole mRB64/M4, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Amperage Rating: 25 A
- Voltage Rating: 230 V AC
- Surge Current Capacity: 250 kA
- Rated Switching Capacity: 10 kA
- Tripping Characteristic: C (Non-delayed)
- Leakage Current Type: Type A (pulse-current sensitive)
- Number of Poles: 3
- Rated Operational Voltage (Ue) Max: 415 V
- Rated Insulation Voltage (Ui): 440 V
- Rated Short-Circuit Breaking Capacity: 10 kA
- Operating Ambient Temperature: -25 °C to 40 °C
- Degree of Protection: IP20
- Mounting Method: DIN rail
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Dimensions (H x L x W): 75mm x 86mm x 73mm
- Weight: 0.43 kg
Key Features
- Combined residual-current device (RCD) and miniature circuit breaker (MCB)
- Rated current: 25 A
- Rated operational voltage up to 415 V
- Tripping characteristic: Type C, non-delayed
- 3 poles protected
- Pulse-current sensitive Type A leakage current detection
- Surge current capacity: 250 kA
- Mounting method: DIN rail
- Degree of protection: IP20
- Operating ambient temperature range: -25 °C to 40 °C
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole mRB64/M4 RCBO is available for immediate purchase, ideal for residential and commercial electrical switchgear protection.
