Home/Electrical/Switchgear/Residual Current Devices/Residual Current Breaker 3PN 10A | 30mA C Curve | 6000A A Type by Clipsal

Trade Discount 33%

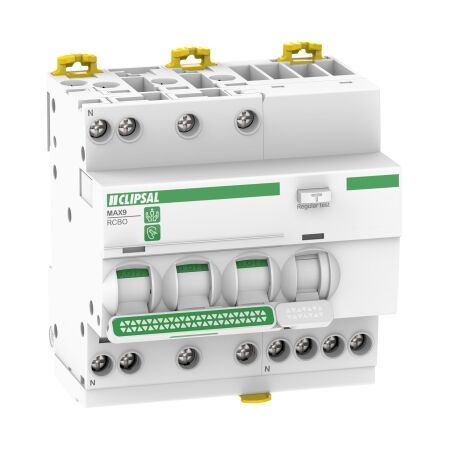

MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 3PN, 10A, 30mA, C Curve, 6000A, A Type, 5 MOD

Residual Current Breaker 3PN 10A | 30mA C Curve | 6000A A Type by Clipsal

BRAND: Clipsal

SKU: MX9R3510

$140.40 List price: $210.60

+ −

30 Days Return Delivery Options

Residual current breaker with 3PN configuration and 10A rating—ideal for residential and commercial circuit protection. Built for safety with 30mA sensitivity and 6000A breaking capacity.

Description
Attachments

Product Name/Title: MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 3PN, 10A, 30mA, C Curve, 6000A, A Type, 5 MOD

Brand: Clipsal

SKU: MX9R3510

Alternatively Known As: RCBO, Residual Current Circuit Breaker, Circuit Protection Device

Technical Specifications

Rated current: 10 A at 30 °C conforming to AS/NZS 61009.1
Rated operational voltage: 415 V AC 50 Hz
IP degree of protection: IP20
Ambient air temperature for operation: -25...70 °C
Network frequency: 50 Hz
Limitation class: 3
Rated insulation voltage: 440 V AC 50 Hz
Rated impulse withstand voltage: 4 kV
Pollution degree: 2
Overvoltage category: III
Dimensions (H x L x W): 95mm x 75mm x 90mm
Weight: 0.5 kg

Key Features

3 poles with neutral (3P + N) configuration.
Earth-leakage sensitivity of 30 mA.
Breaking capacity of 6000 A at 415 V AC.
Type A earth-leakage protection.
C curve for overcurrent protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Any location requiring circuit protection

Standards & Compliance

Complies with AS/NZS 61009.1 for safety and performance standards.

Environmental Benefits

Compliant with RoHS and free of substances of very high concern.

Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) is available now for immediate purchase. Ideal for residential and commercial spaces, ensuring safety and reliability.

MX9R3510 (MX9R3510, 259 Kb) [Download]
