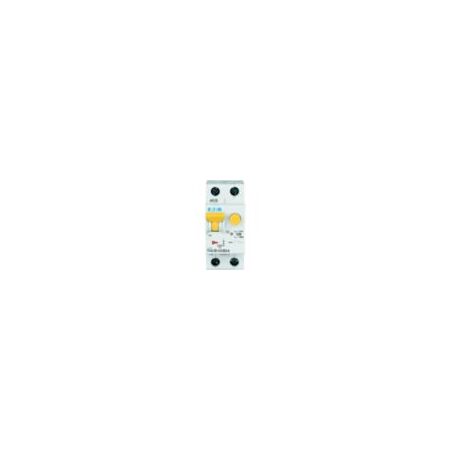

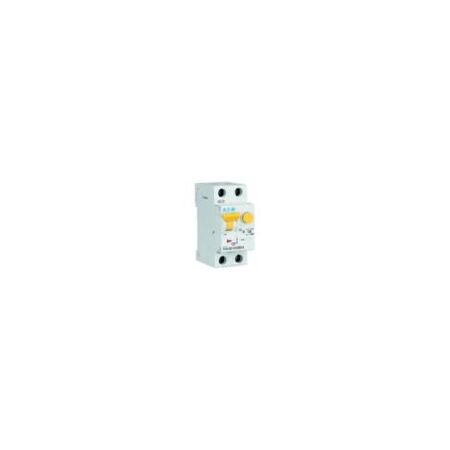

Residual Current Breaker with Overcurrent Protection | 25A Rating | 30mA Sensitivity | DIN Rail Mount by Eaton
This residual current breaker with overcurrent protection features a 25A rating and 30mA sensitivity—ideal for residential and commercial electrical circuit protection. Built for safety compliance, it offers easy DIN rail installation and immediate fault response.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residual Current Breaker with Overcurrent Protection | 25A Rating | 30mA Sensitivity | DIN Rail Mount by Eaton
Brand: Eaton
SKU: Y7-236279
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO, RCD/MCB Combo, Circuit Breaker with RCD
Technical Specifications
- Rated current: 25 A
- Residual current sensitivity: 30 mA
- Tripping characteristic: C-LS
- Number of poles: Single-pole + Neutral (1N)
- Voltage rating: 230 V AC
- Rated switching capacity: 10 kA
- Impulse withstand voltage: 4 kV
- Frequency rating: 50 Hz
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Operating temperature range: -25 °C to 40 °C
- Mounting method: DIN rail
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 35mm
- Weight: 0.204 kg
Key Features
- Combined residual-current device (RCD) and miniature circuit breaker (MCB)
- 25A amperage rating with 30mA residual current sensitivity
- Type A pulse-current sensitive for enhanced protection
- C-LS tripping characteristic for selective protection
- Single-pole plus neutral (1N) configuration
- Concurrent switching of neutral conductor
- Undelayed tripping for immediate fault response
- DIN rail mounting for easy installation
- IP20 degree of protection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper device function.
Applications
- Residential switchgear protection
- Commercial electrical circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and faults, enhancing safety and reducing environmental damage
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Standard Eaton warranty applies; refer to Eaton documentation for details.
Available Now
The Eaton Moeller series xPole PKN6/M RCBO is available for immediate purchase, ideal for residential and commercial electrical protection applications.
