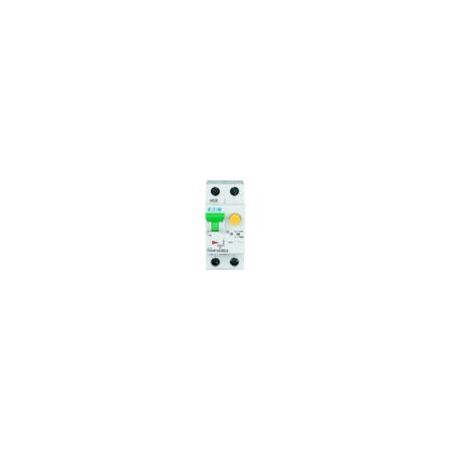

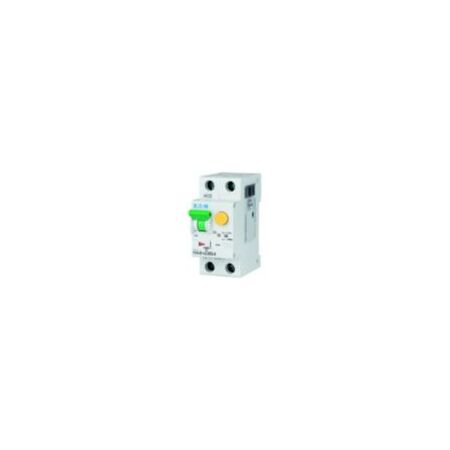

Residual Current Breaker with Overcurrent Protection | 6A 30mA | Type A Leakage Detection | IP20 by Eaton
This residual current breaker with overcurrent protection features a 6A amperage rating and 30mA sensitivity—ideal for residential and commercial switchgear applications. Built for safety, it offers Type A leakage detection and fast disconnection with undelayed tripping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Residual Current Breaker with Overcurrent Protection | 6A 30mA | Type A Leakage Detection | IP20 by Eaton
Brand: Eaton
SKU: Y7-236022
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 6A 30mA, Eaton PKN6/M, xPole RCBO
Technical Specifications
- Rated current: 6 A
- Rated operational voltage: 230 V AC
- Rated insulation voltage: 440 V
- Rated impulse withstand voltage: 4 kV
- Rated switching capacity: 10 kA
- Frequency rating: 50 Hz
- Tripping characteristic: C-LS
- Release characteristic: C
- Leakage current type: Type A (pulse-current sensitive)
- Number of poles: Single-pole + Neutral (1N)
- Degree of protection: IP20
- Mounting method: DIN rail
- Connectable conductor cross section: 1 mm² to 25 mm²
- Operating temperature range: -25 °C to 40 °C
- Surge current capacity: 0.25 kA
- Non-delayed tripping
- Dimensions (H x L x W): 75mm x 80mm x 35mm
- Weight: 0.199 kg
Key Features
- Combined RCD/MCB device providing residual-current and overcurrent protection
- 6 A amperage rating with 30 mA sensitivity
- Type A pulse-current sensitive leakage current detection
- Single-pole plus neutral (1N) configuration
- C-LS tripping characteristic for selective protection
- Undelayed tripping for fast disconnection
- Concurrently switching neutral conductor
- Mounting on DIN rail
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and shocks
- Supports energy-efficient electrical system protection
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole PKN6/M RCBO is available now for immediate purchase. Ideal for residential and commercial electrical switchgear applications requiring combined residual current and overcurrent protection.
