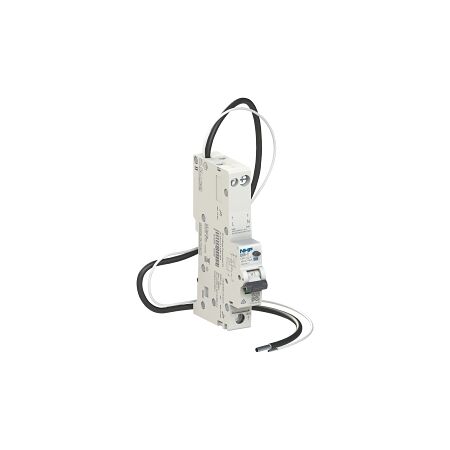

NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A C Curve 10mA Type A (Longbody)

Residual Current Breaker RCBO 10kA | 16A C Curve | 10mA Type A | DIN Rail by NHP

BRAND: NHP

SKU: DTRL1610A

$133.70 List price: $177.50

+ −

30 Days Return Delivery Options

Residual current breaker with 10kA short circuit capacity and 16A C curve—ideal for residential, commercial, and industrial applications. Built for enhanced safety with 10mA residual current and easy DIN rail installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A C Curve 10mA Type A (Longbody)

Brand: NHP

SKU: DTRL1610A

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 16 A
Rated Voltage: 240 V
Rated Leakage Current: 10 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 40 ms
Min Service Voltage: 184 V
Max Operating Voltage: 264 V
Rated Residual Make Break Capacity: 10000 A
Number of Poles Total: 2
Degree of Protection: IP40
Mechanical Life: 20000 cycles
Max Shock Duration: 13 ms
Max Shock Acceleration: 30 g
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 117mm x 75.8mm x 17.5mm
Weight: 0.2 kg

Key Features

10kA short circuit breaking capacity
C curve tripping characteristic for general applications
10mA residual current for enhanced safety
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A C Curve 10mA Type A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

DTRL1610A-AU-RCBO-10kA-1PN-C-Curve-Datasheet.pdf (DTRL1610A-AU-RCBO-10kA-1PN-C-Curve-Datasheet.pdf, 196 Kb) [Download]
