Residual Current Breaker RCBO 10kA | 16A C Curve | 30mA Type A by NHP
Residual current breaker with 10kA short circuit capacity and 16A C curve—ideal for residential and commercial safety. Built for enhanced protection with 30mA residual current rating and easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

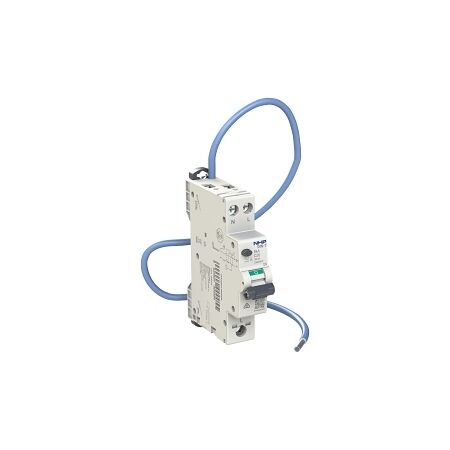

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 16A C Curve 30mA Type A
Brand: NHP
SKU: DTRS1630A
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 160 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 3000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 86mm x 75mm x 18mm
- Weight: 0.17 kg
Key Features
- 10kA short circuit breaking capacity
- 30mA residual current rating for enhanced safety
- C curve for standard applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical protection.
