Residual Current Breaker RCBO 10kA | 16A D Curve | 100mA Type A | Longbody by NHP
Residual current breaker with 10kA short circuit capacity and 100mA residual current rating—ideal for residential, commercial, and industrial safety. Built for high inrush current applications, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

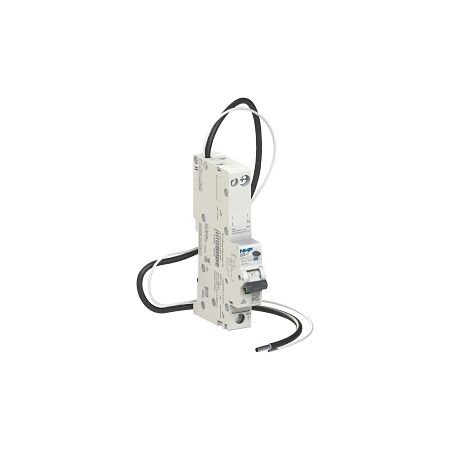

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A D Curve 100mA Type A (Longbody)
Brand: NHP
SKU: DTRL16100AD
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: D
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 184 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Max Shock Duration: 13 ms
- Max Shock Acceleration: 30 g
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 117mm x 75.8mm x 17.5mm
- Weight: 0.2 kg
Key Features
- 10kA short circuit breaking capacity
- 100mA residual current rating for enhanced safety
- D curve for high inrush current applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A D Curve 100mA Type A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
