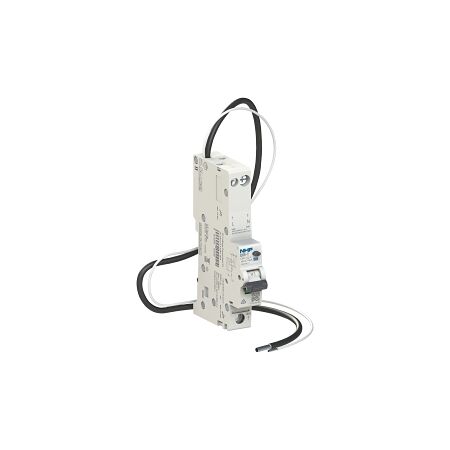

NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A D Curve 30mA Type A (Longbody)

Residual Current Breaker RCBO 10kA | 16A D Curve | 30mA Type A | DIN Rail by NHP

BRAND: NHP

SKU: DTRL1630AD

$123.20 List price: $163.60

+ −

30 Days Return Delivery Options

Residual current breaker with 10kA short circuit capacity and 16A D curve—ideal for residential and commercial safety. Built for enhanced protection, with 30mA leakage current rating and easy DIN rail installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A D Curve 30mA Type A (Longbody)

Brand: NHP

SKU: DTRL1630AD

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 16 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: D
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 184 V
Max Operating Voltage: 264 V
Rated Residual Make Break Capacity: 10000 A
Number of Poles Total: 2
Degree of Protection: IP40
Mechanical Life: 20000 cycles
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 117mm x 75.8mm x 17.5mm
Weight: 0.2 kg

Key Features

10 kA short circuit breaking capacity
30 mA leakage current rating for enhanced safety
D curve for high inrush current applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small commercial buildings
Commercial: Retail and office spaces requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 16A D Curve 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTRL1630AD-AU-RCBO-10kA-1PN-D-Curve-Datasheet.pdf (DTRL1630AD-AU-RCBO-10kA-1PN-D-Curve-Datasheet.pdf, 197 Kb) [Download]
