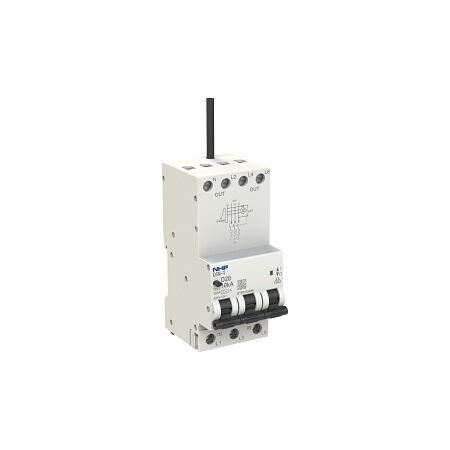

NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 20A D Curve 100mA Type A (Longbody)

Residual Current Breaker RCBO 10kA | 20A D Curve | 100mA Type A | DIN Rail by NHP

BRAND: NHP

SKU: DTRT20100AD

$577.10 List price: $766.30

+ −

30 Days Return Delivery Options

Residual current breaker with 10kA short circuit capacity and 100mA leakage current—ideal for residential and commercial safety. Built for high inrush current applications, with easy DIN rail installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 20A D Curve 100mA Type A (Longbody)

Brand: NHP

SKU: DTRT20100AD

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 20 A
Rated Voltage: 415 V
Rated Leakage Current: 100 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: D
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 207 V
Max Operating Voltage: 457 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles Total: 4
Number of Protected Poles: 3
Degree of Protection: IP40
Mounting Method: DIN rail
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
Weight: 0.55 kg

Key Features

10 kA short circuit breaking capacity
Rated leakage current of 100 mA
D curve for high inrush current applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small commercial buildings
Commercial: Retail and office spaces requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for residual current devices.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 20A D Curve 100mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTRT20100AD-AU-RCBO-10kA-3PN-D-Curve-Datasheet.pdf (DTRT20100AD-AU-RCBO-10kA-3PN-D-Curve-Datasheet.pdf, 181 Kb) [Download]
