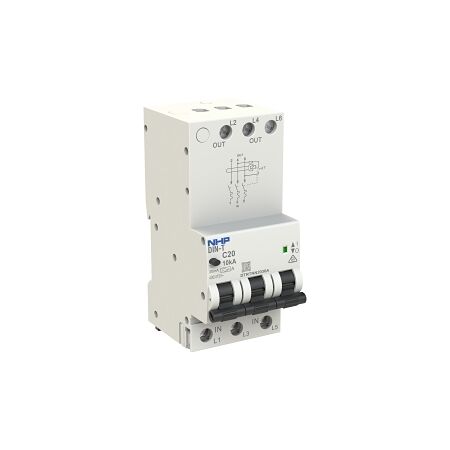

NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 06A C Curve 100mA Type A (Longbody)

Residual Current Breaker RCBO 10kA 3 Pole | 06A C Curve | IP40 Protection by NHP

BRAND: NHP

SKU: DTRTNN06100A

$577.10 List price: $766.30

+ −

30 Days Return Delivery Options

Residual current breaker with 10kA short circuit capacity and C curve tripping—ideal for residential and commercial safety. Built for easy DIN rail installation, with IP40 protection against dust and moisture.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 06A C Curve 100mA Type A (Longbody)

Brand: NHP

SKU: DTRTNN06100A

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 6 A
Rated Voltage: 415 V
Rated Leakage Current: 100 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 206 V
Max Operating Voltage: 457 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles: 3
Degree of Protection: IP40
Mechanical Life: 20000 cycles
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
Weight: 0.49 kg

Key Features

10 kA short circuit breaking capacity
C curve tripping characteristic for inductive loads
IP40 protection rating for dust and moisture resistance
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for residual current devices.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 06A C Curve 100mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTRTNN06100A-AU-RCBO-10kA-3P-C-Curve-Datasheet.pdf (DTRTNN06100A-AU-RCBO-10kA-3P-C-Curve-Datasheet.pdf, 196 Kb) [Download]
