Residual Current Breaker RCBO 10kA | 3 Pole 40A C Curve | 100mA Type A by NHP
Residual current breaker with 10kA short circuit capacity and 3 pole 40A C curve—ideal for residential and commercial safety. Built for easy DIN rail installation, with 100mA residual current rating for enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

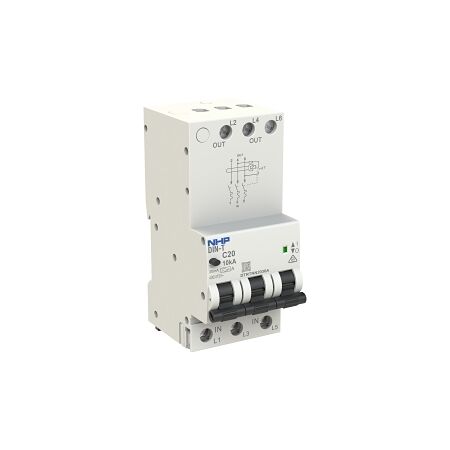

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 40A C Curve 100mA Type A (Longbody)
Brand: NHP
SKU: DTRTNN40100A
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Rated Voltage: 415 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 206 V
- Max Operating Voltage: 457 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 3
- Degree of Protection: IP40
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.49 kg
Key Features
- 10 kA short circuit breaking capacity
- C curve tripping characteristic for inductive loads
- 100 mA residual current rating for personal protection
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 40A C Curve 100mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
