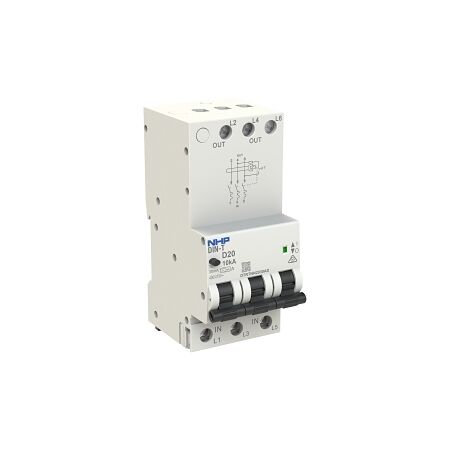

Residual Current Breaker RCBO 10kA | 3 Pole 63A D Curve | 100mA Type A by NHP

BRAND: NHP
SKU: DTRTNN63100AD
$671.00 List price: $891.00
+
Residual current breaker with 10kA short circuit capacity and 100mA leakage current—ideal for residential and commercial safety. Built for high inrush current applications, with DIN rail mounting for easy installation.

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 63A D Curve 100mA Type A (Longbody)

Brand: NHP

SKU: DTRTNN63100AD

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 63 A
  • Rated Voltage: 415 V
  • Rated Leakage Current: 100 mA
  • Frequency: 50/60 Hz
  • Rated Short Circuit Breaking Capacity: 10 kA
  • Voltage Type: AC
  • Trip Curve: D
  • Rated Impulse Withstand Voltage: 4 kV
  • Tripping Time: 300 ms
  • Min Service Voltage: 206 V
  • Max Operating Voltage: 457 V
  • Rated Residual Make Break Capacity: 6000 A
  • Number of Poles: 3
  • Degree of Protection: IP40
  • Mechanical Life: 20000 cycles
  • Operating Temperature: -5-55 °C
  • Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
  • Weight: 0.49 kg
Key Features
  • 10 kA short circuit breaking capacity
  • Rated leakage current of 100 mA
  • D curve for high inrush current applications
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 63A D Curve 100mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable

DTRTNN63100AD-AU-RCBO-10kA-3P-D-Curve-Datasheet.pdf (DTRTNN63100AD-AU-RCBO-10kA-3P-D-Curve-Datasheet.pdf, 196 Kb) [Download]
