Residual Current Breaker RCBO 10kA | 3 Pole & Neutral | 20A D Curve | 300mA Type A by NHP
Residual current breaker with 10kA short circuit capacity and 300mA residual current rating—ideal for residential and commercial safety. Built for high inrush current applications, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

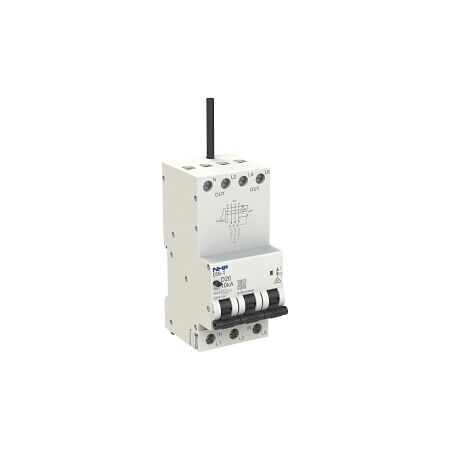

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 20A D Curve 300mA Type A (Longbody)
Brand: NHP
SKU: DTRT20300AD
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 415 V
- Rated Leakage Current: 300 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: D
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 207 V
- Max Operating Voltage: 457 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 4
- Number of Protected Poles: 3
- Degree of Protection: IP40
- Mounting Method: DIN rail
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.55 kg
Key Features
- 10 kA short circuit breaking capacity
- 300 mA residual current rating
- D curve for high inrush current applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small commercial buildings
- Commercial: Retail and office spaces requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 20A D Curve 300mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
