Residual Current Breaker RCBO 10kA | 3 Pole & Neutral | 25A D Curve | IP40 by NHP
Residual current breaker with 10kA short circuit capacity and 25A D curve—ideal for residential and commercial electrical safety. Built for high inrush currents, with IP40 protection for dust and moisture resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

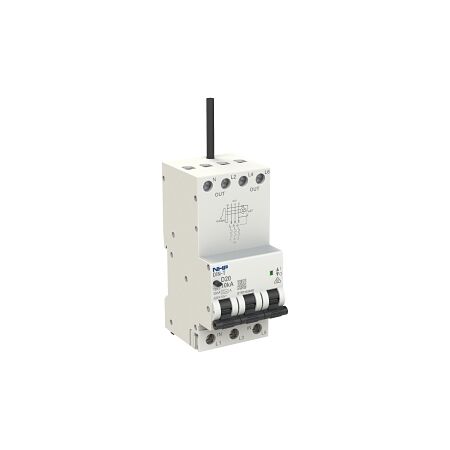

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 25A D Curve 30mA Type A (Longbody)
Brand: NHP
SKU: DTRT2530AD
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: D
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 207 V
- Max Operating Voltage: 457 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 4
- Number of Protected Poles: 3
- Mounting Method: DIN rail
- Degree of Protection: IP40
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Connectable Conductor Cross Section (Solid Core): 1-25 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-16 mm²
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.55 kg
Key Features
- 10 kA short circuit breaking capacity
- D curve tripping characteristic for high inrush currents
- IP40 protection rating for dust and moisture resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small commercial buildings
- Commercial: Retail and office spaces requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 25A D Curve 30mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety.
