Residual Current Breaker RCBO 6kA | 16A B Curve | 30mA Type A | DIN Rail by NHP
Residual current breaker with 6kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting and B curve tripping for general applications.
Sign in
Please login to continue to your account.

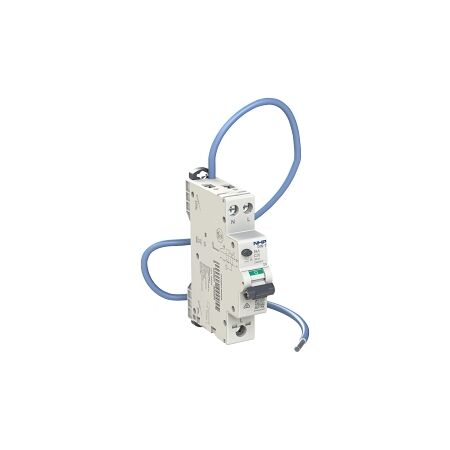

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 6kA 1 Pole and Switched Neutral 16A B Curve 30mA Type A
Brand: NHP
SKU: DTR6S1630AB
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: B
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 160 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 3000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 86mm x 75mm x 18mm
- Weight: 0.17 kg
- 6kA short circuit breaking capacity
- 30mA residual current rating for enhanced safety
- B curve tripping characteristic for general applications
- DIN rail mounting for easy installation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
- Complies with AS/NZS 61009 for safety and performance standards.
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
1 year warranty against manufacturing defects.
The NHP DIN-T Residual Current Breaker RCBO 6kA 1 Pole and Switched Neutral 16A B Curve 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
