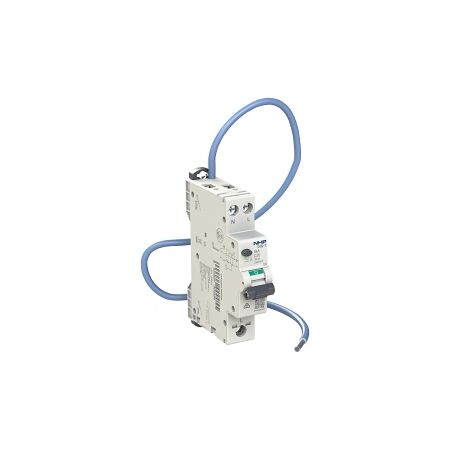

NHP DIN-T Residual Current Breaker RCBO 6kA 1 Pole and Switched Neutral 20A C Curve 10mA Type A

Residual Current Breaker RCBO 6kA | 20A C Curve | 10mA Type A | DIN Rail by NHP

BRAND: NHP

SKU: DTR6S2010A

$162.40 List price: $202.40

+ −

30 Days Return Delivery Options

Residual current breaker with 6kA short circuit capacity and 10mA leakage rating—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, offering reliable protection with a 20A C curve.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 6kA 1 Pole and Switched Neutral 20A C Curve 10mA Type A

Brand: NHP

SKU: DTR6S2010A

Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 20 A
Rated Voltage: 240 V
Rated Leakage Current: 10 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 40 ms
Min Service Voltage: 160 V
Max Operating Voltage: 264 V
Rated Residual Make Break Capacity: 3000 A
Number of Poles Total: 2
Degree of Protection: IP40
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 86mm x 75mm x 18mm
Weight: 0.17 kg

Key Features

6kA short circuit breaking capacity
10mA leakage current rating
C curve tripping characteristic for general applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and light industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for residual current devices.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Breaker RCBO is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTR6S2010A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf (DTR6S2010A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf, 203 Kb) [Download]
