Residual Current Breaker RCBO 6kA | 32A C Curve | 30mA Type A | Longbody by NHP
Residual current breaker with 6kA short circuit capacity and 32A C curve—ideal for residential and commercial safety. Built for enhanced protection, with 30mA residual current rating and easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

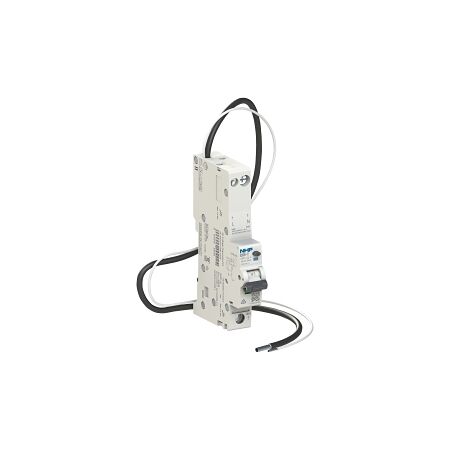

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 6kA 1 Pole and Neutral 32A C Curve 30mA Type A (Longbody)
Brand: NHP
SKU: DTR6L3230A
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 184 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 117mm x 75.8mm x 17.5mm
- Weight: 0.2 kg
Key Features
- 6kA short circuit breaking capacity
- 30mA residual current rating for enhanced safety
- C curve for general applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 6kA 1 Pole and Neutral 32A C Curve 30mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial applications.
